XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
1/4
  • XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
  • XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
  • XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
  • XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa

Features
  • Ready for Meshtastic?Pre-flashed with Meshtastic firmware, the kit works out of the box and can quickly join or create a Meshtastic mesh network.
  • Dual Wireless Connectivity?Supports long-range LoRa communication (862–930 MHz) along with 2.4 GHz Wi-Fi and BLE 5.0. When used with a U.FL antenna, it can achieve 2–5 km LoRa communication and 100 m+ Wi-Fi/BLE range.

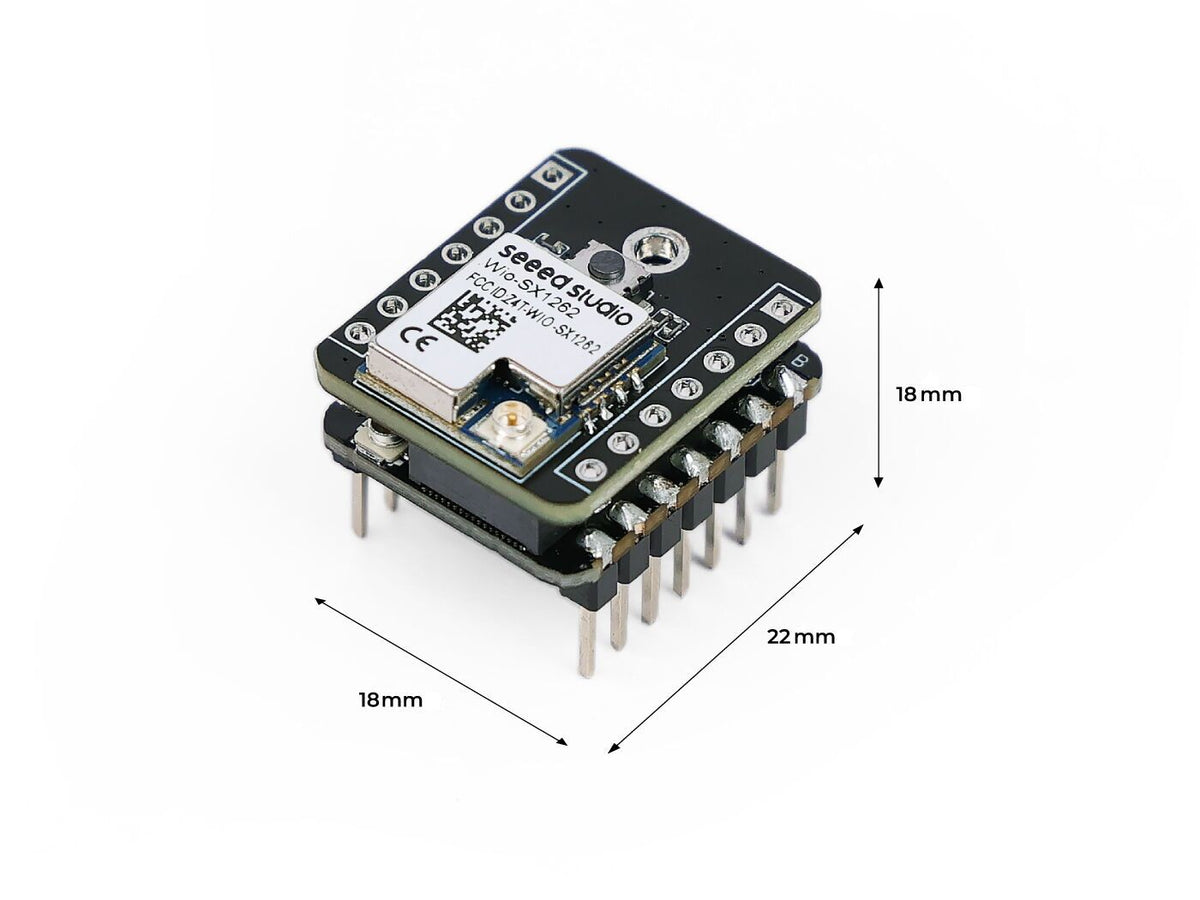

  • Thumb-Sized Compact Design?With a compact size of just 21 × 18 mm and the classic XIAO form factor, it is ideal for space-constrained projects such as wearables and embedded devices.
  • Powerful ESP32-S3 MCU?Powered by the ESP32-S3 dual-core Xtensa processor running up to 240 MHz. The board includes multiple expansion interfaces and supports Arduino and MicroPython development.
  • Integrated Power Management?Equipped with a USB Type-C interface and built-in lithium battery charging management for flexible power options.
  • Flexible for Multiple Applications?The same hardware can be used as a Meshtastic node or router, a single-channel LoRaWAN gateway, or a LoRa/LoRaWAN sensor platform
 1 left
£12.00
£12.00

Description

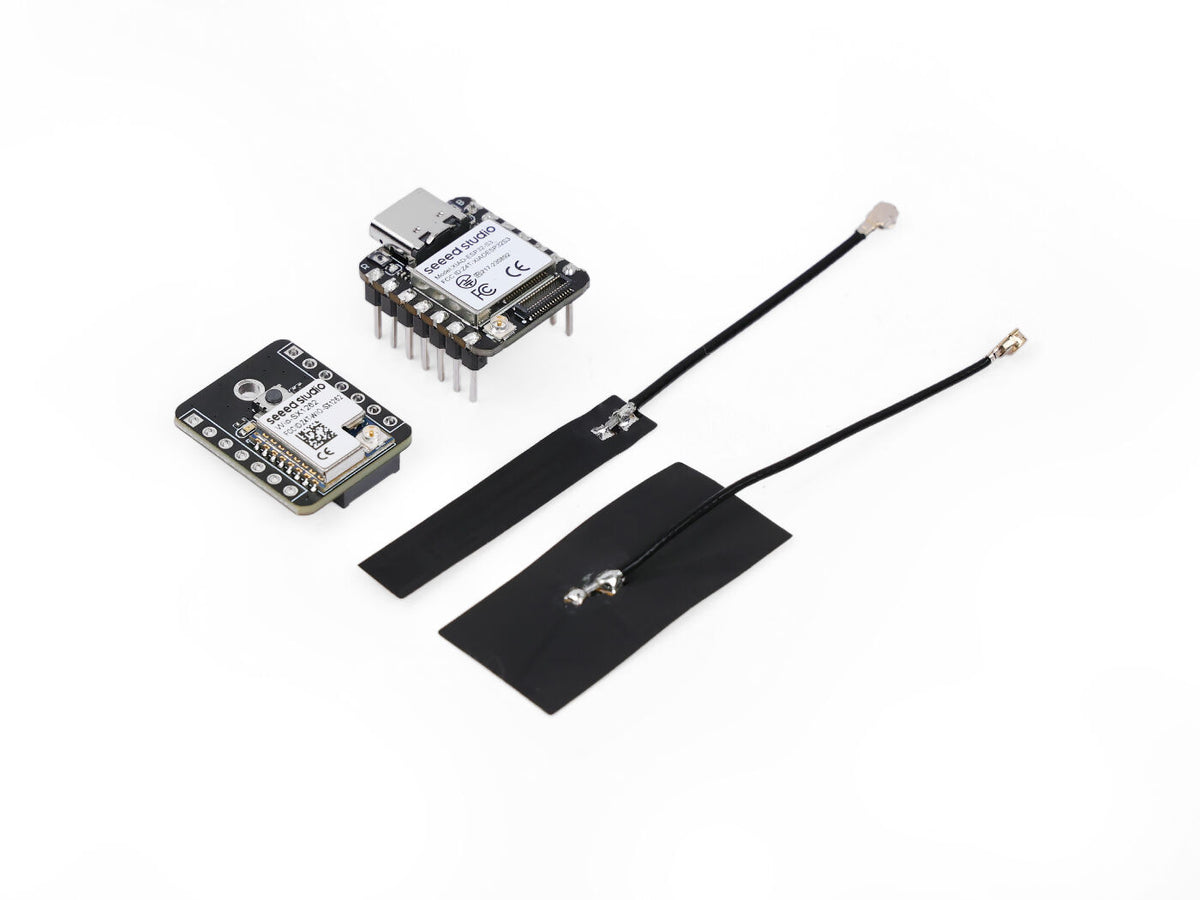

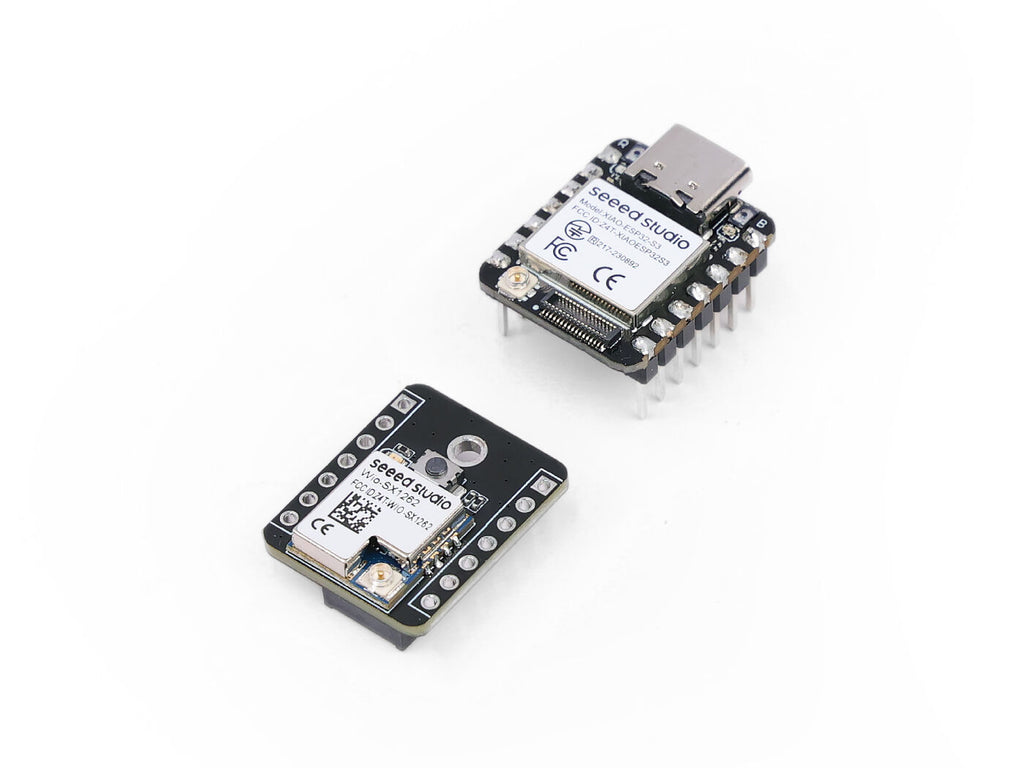

This thumb-sized LoRa dev kit, featuring the XIAO ESP32S3 and Wio-SX1262 LoRa module, is an ideal starter kit for Meshtastic and LoRa/LoRaWAN projects. Supporting WiFi, BLE, and LoRa, it includes a built-in power management chip and can be extended via IIC, UART, and other GPIO interfaces, with compatibility for Arduino development.
