WSC2-Compact-LS: LoRaWAN Weather Station Kit

Features
  • Supports external 3 in 1 weather sensor (DR-THP-6P)
  • Supports interrupt rain gauge (DR-RG-6P)
  • Supports illuminance sensor(DR-IL-6P)
  • Easy to install, no need for additional MPTT or solar panels
  • Solar + 3000 mAh Li-ion battery
  • Supports Bluetooth v5.1 remote configuration
  • Supports OTA firmware updates
  • Uplinks periodically
  • Downlink to change parameters
 Backorder
£87.00
£87.00

Description

The WSC2-Compact-LS is Dragino's 3rd generation Weather Station Kit. It is designed for measuring atmospheric conditions to provide information for weather forecasts and to study the weather and climate.

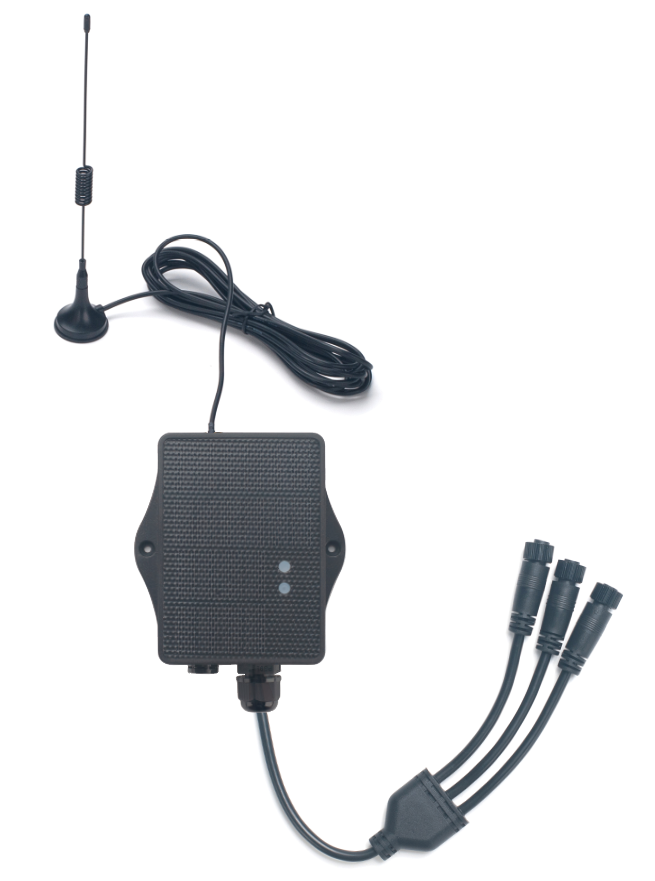

The wireless transmitter (WSC2-Compact-LS) and the sensors of the 3rd generation weather station kit are low power and there is no need for an extra power supply or MQTT.  It provides an easy installation and low cost Long Range Wireless weather station.

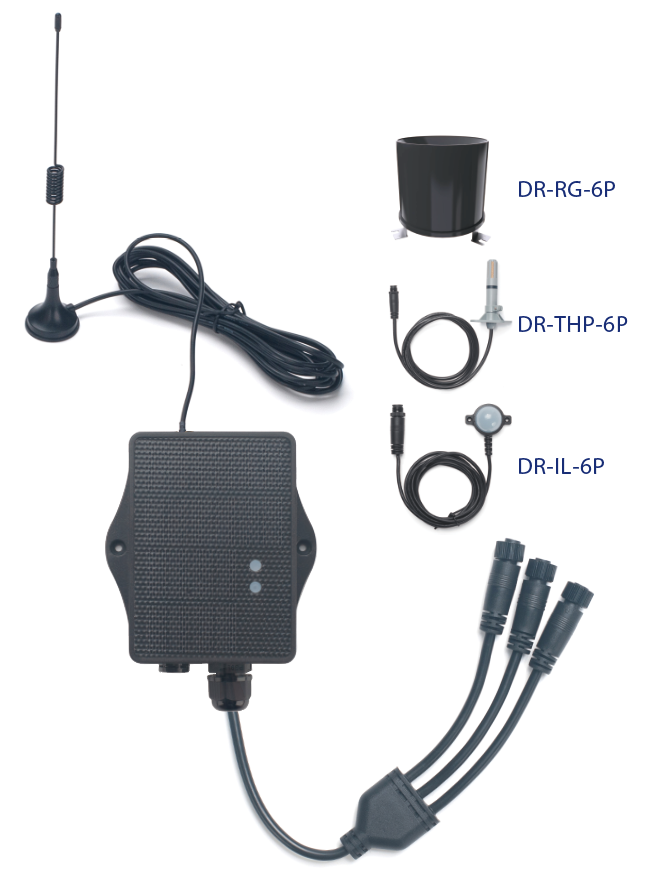

The Weather Station Kit includes a LoRaWAN transmitter, a 3 in 1 sensor for temperature/humidity/air pressure , Illuminance sensor and rain gauge.

The 3 in 1 sensor can measure: Temperature, Humidity, Air pressure. The transmitter uses I2C interface to communicate with the weather station. It also has a pulse count input that can be used to connect a tipping bucket Rain Gauge.

A lightweight, self-powered version that includes a built-in solar panel and battery- it is optimized for measuring key weather parameters and is ideal for quick and easy deployment in farms, greenhouses, and remote research sites.
