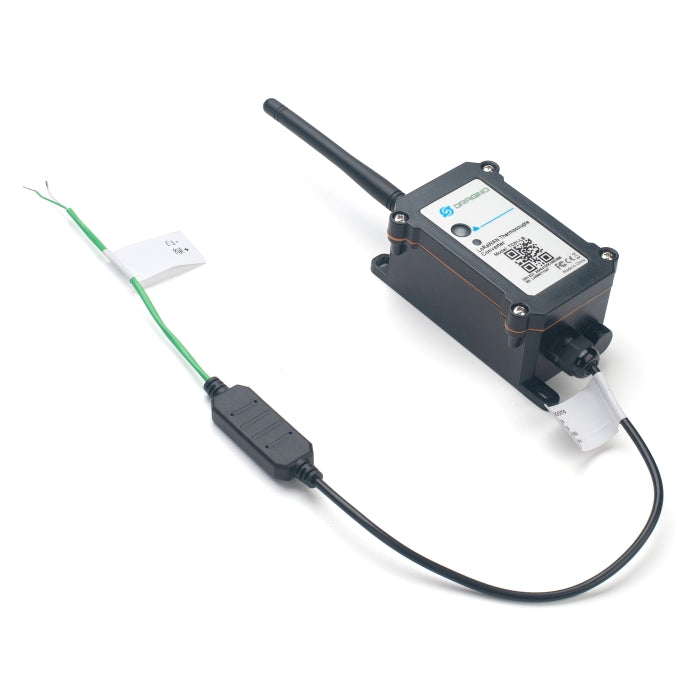

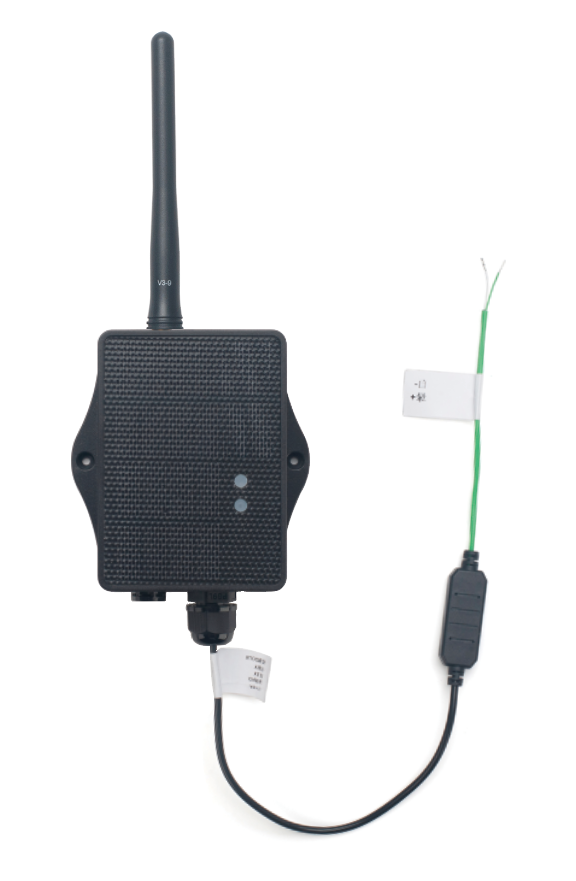

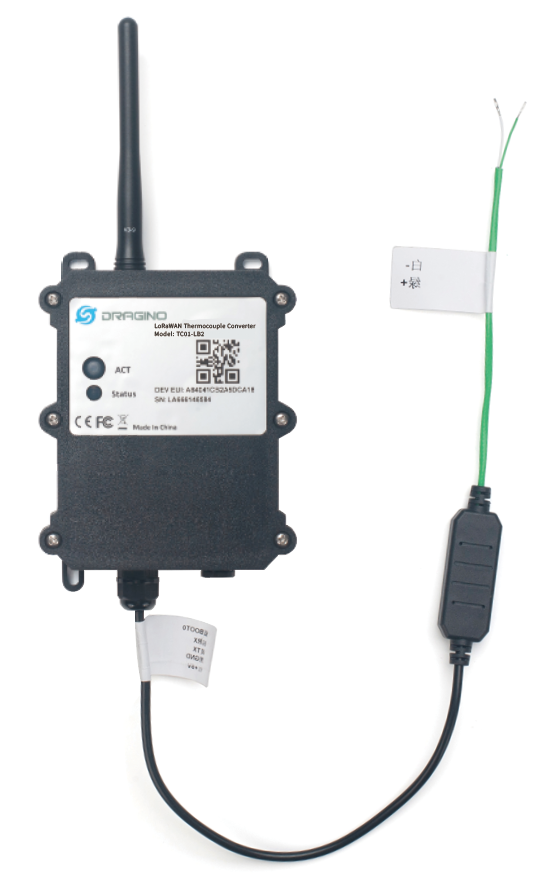

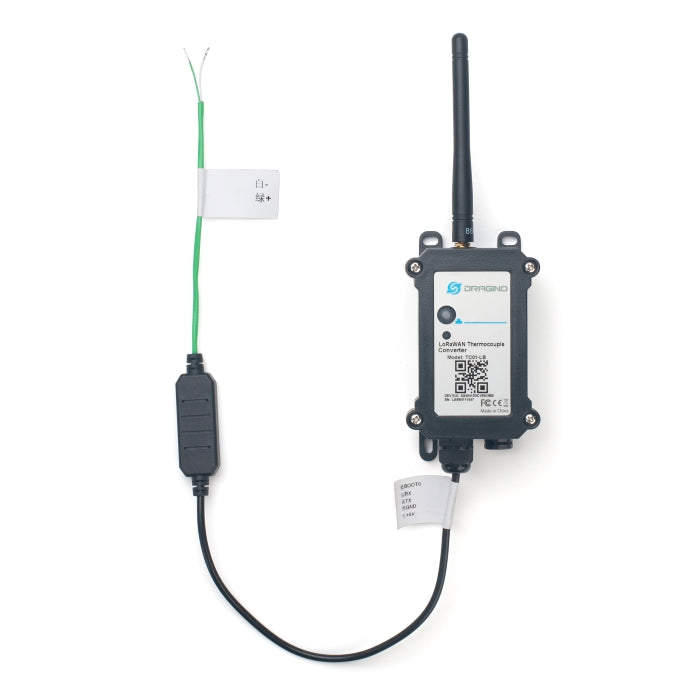

TC01-LX: LoRaWAN Thermocouple Converter

The Dragino TC01-LX is a LoRaWAN Thermocouple Converter for Internet of Things solutions. It is used to measure the industrial environment temperature , and then upload this data to an IoT server via the LoRaWAN network.

The TC01-LX is equipped with 2 open wires so users can connect a 3rd party K, J, N, R,S T, E, or B type thermocouple.

The TC01-LX supports the temperature alarm feature. Users can set temperature alarms for instant notification. The TC01-LX also supports the Datalog feature, it will record the data when there is no network coverage and users can retrieve the sensor value later to ensure no data is missed.

The TC01-LX supports BLE configuration and wireless OTA updates which makes the device easy to use.

The TC01-LX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.

Each TC01-LX is pre-loaded with a set of unique keys for LoRaWAN registration. Users can register these keys to their local LoRaWAN server and it will auto connect after powering on.
