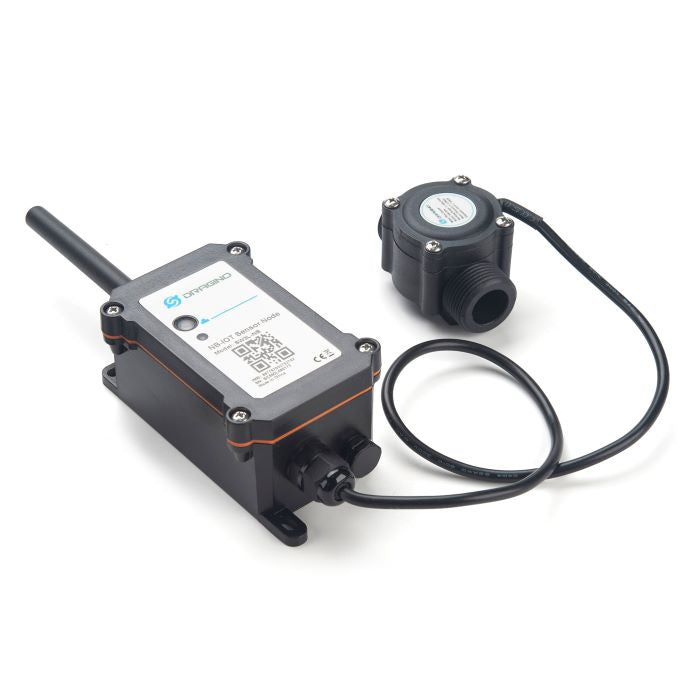

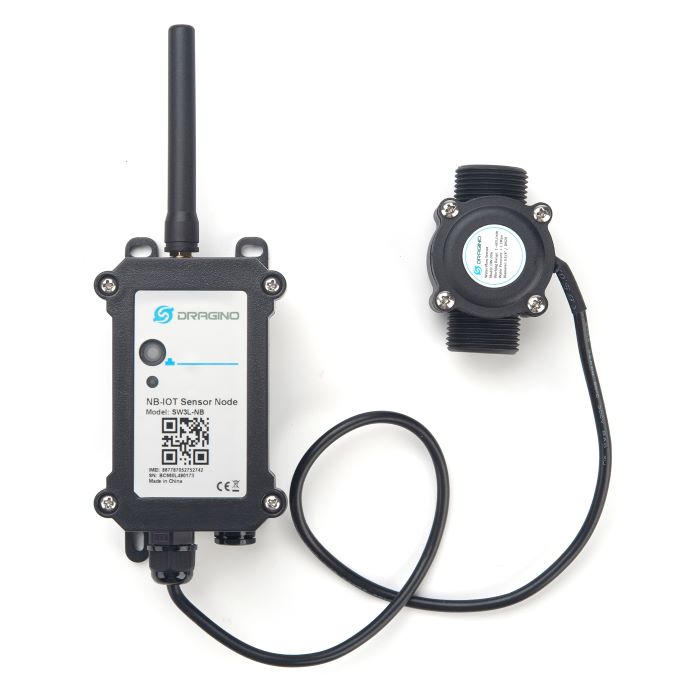

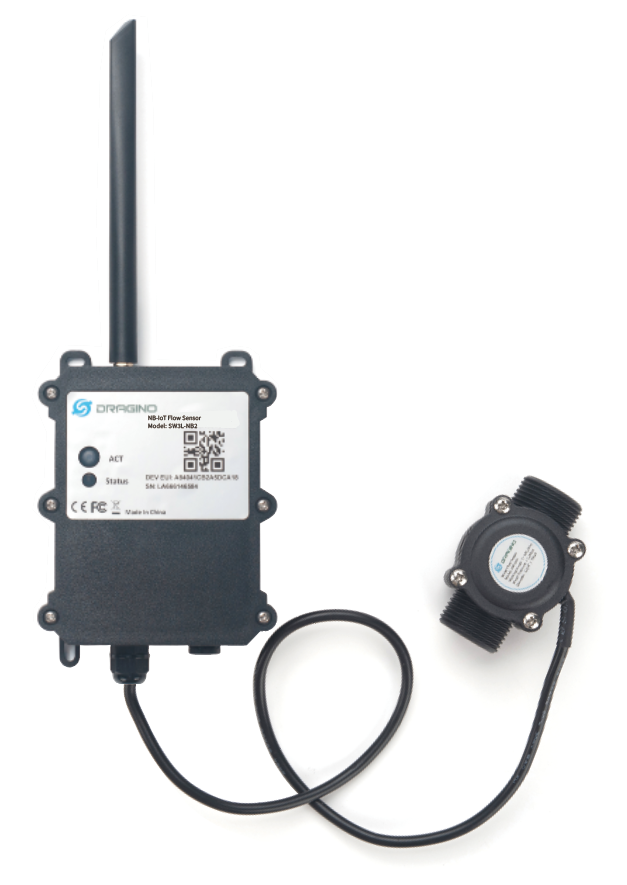

SW3L-NX: NB-IoT Outdoor Flow Sensor

1/4

Features

Upload water flow volume
Monitor water waste
Datalog feature
Alarm feature
Ultra-low power consumption
Supports Bluetooth v5.1 remote configuration
Supports OTA firmware updates
Uplinks periodically
Downlink to change parameters

Power Type 8500 mAh Battery 19000mAh Battery Solar Panel & 3000mAh Battery

Flow Sensor 004: Diameter: G1/2” / DN15. 450 pulse = 1 L 006: Diameter: G3/4” / DN20. 390 pulse = 1 L 010: Diameter: G 1” / DN25. 64 pulse = 1 L 020: Diameter: G 2” / DN50 12 pulse = 1 L

Backorder

£92.00

Description

The Dragino SW3L-NX is an NB-IoT Flow Sensor. It detects water flow volume and uplinks this data to an IoT server via the NB-IoT network. Users can use this to monitor the water usage of their buildings.

The SW3L-NX will send the water flow volume every 20 minutes. It can also detect the water flow status and send alarms, to avoid water waste due to issues such as a broken toilet.

The SW3L-NX is designed for both indoor and outdoor use. It has a weatherproof enclosure and industrial level battery to work in a range temperatures.

The SW3L-NX supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirements, and supports uplinks to various IoT Servers.

The SW3L-NX supports BLE configuration and OTA updates which makes the device easy to use.

The SW3L-NX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.
