SW3L-CX: CAT-M1/LTE-M Outdoor Flow Sensor

1/3

SW3L-CX: CAT-M1/LTE-M Outdoor Flow Sensor

Features

Upload water flow volume
Monitor water waste
Datalog feature
Alarm feature
Ultra-low power consumption
Supports Bluetooth v5.1 remote configuration
Supports OTA firmware updates
Uplinks periodically
GNSS for Location reporting
Downlink to change parameters

Power Type 8500 mAh Battery 19000mAh Battery Solar Panel & 3000mAh Battery

Flow Sensor 004: Diameter: G1/2” / DN15. 450 pulse = 1 L 006: Diameter: G3/4” / DN20. 390 pulse = 1 L 010: Diameter: G 1” / DN25. 64 pulse = 1 L 020: Diameter: G 2” / DN50 12 pulse = 1 L

Backorder

£98.00

Description

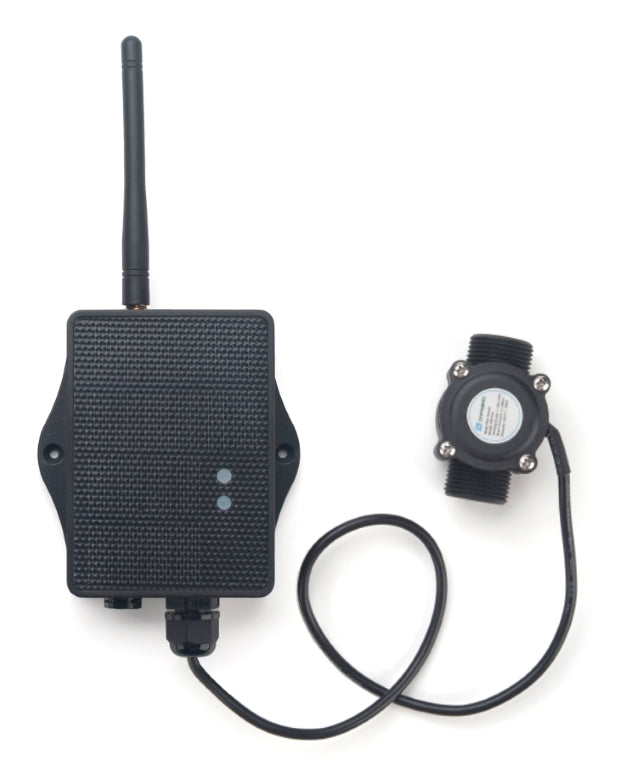

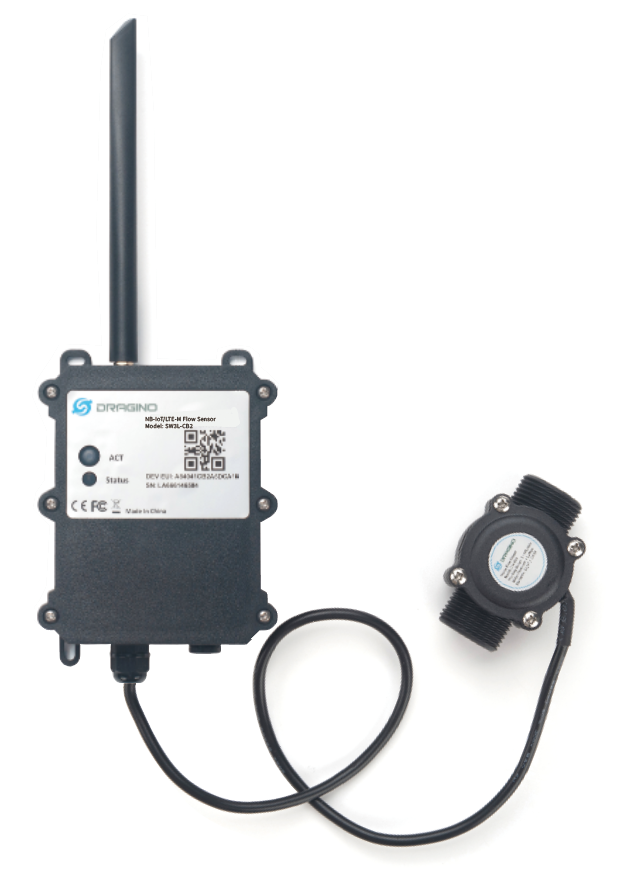

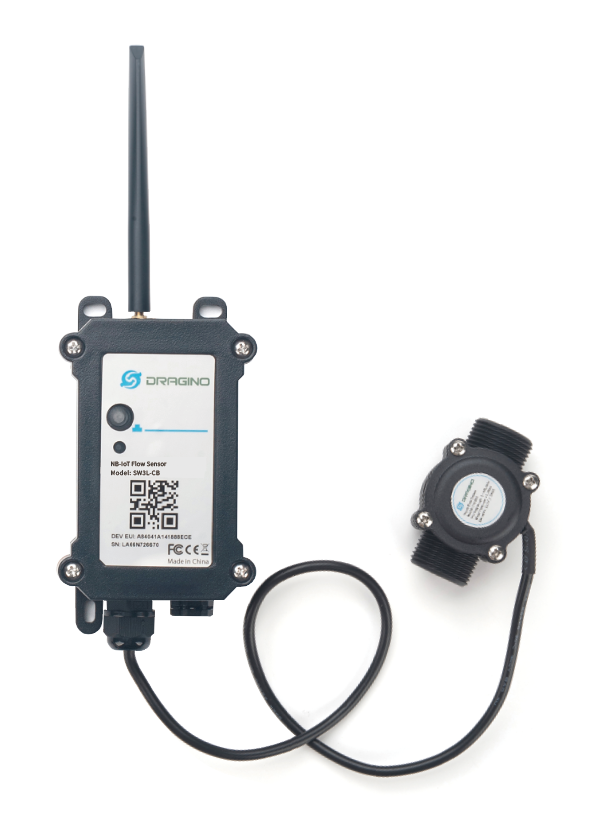

The Dragino SW3L-CX is an CAT-M1/LTE-M Flow Sensor. It detects water flow volume and uplinks this data to an IoT server via the CAT-M1/LTE-M network. Users can use this to monitor the water usage of their buildings.

The SW3L-CX will send the water flow volume every 20 minutes. It can also detect the water flow status and send alarms, to avoid water waste due to issues such as a broken toilet.

The SW3L-CX is designed for both indoor and outdoor use. It has a weatherproof enclosure and industrial level battery to work in a range temperatures.

The SW3L-CX supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirements, and supports uplinks to various IoT Servers.

The SW3L-CX supports BLE configuration and OTA updates which makes the device easy to use.

The SW3L-CX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.
