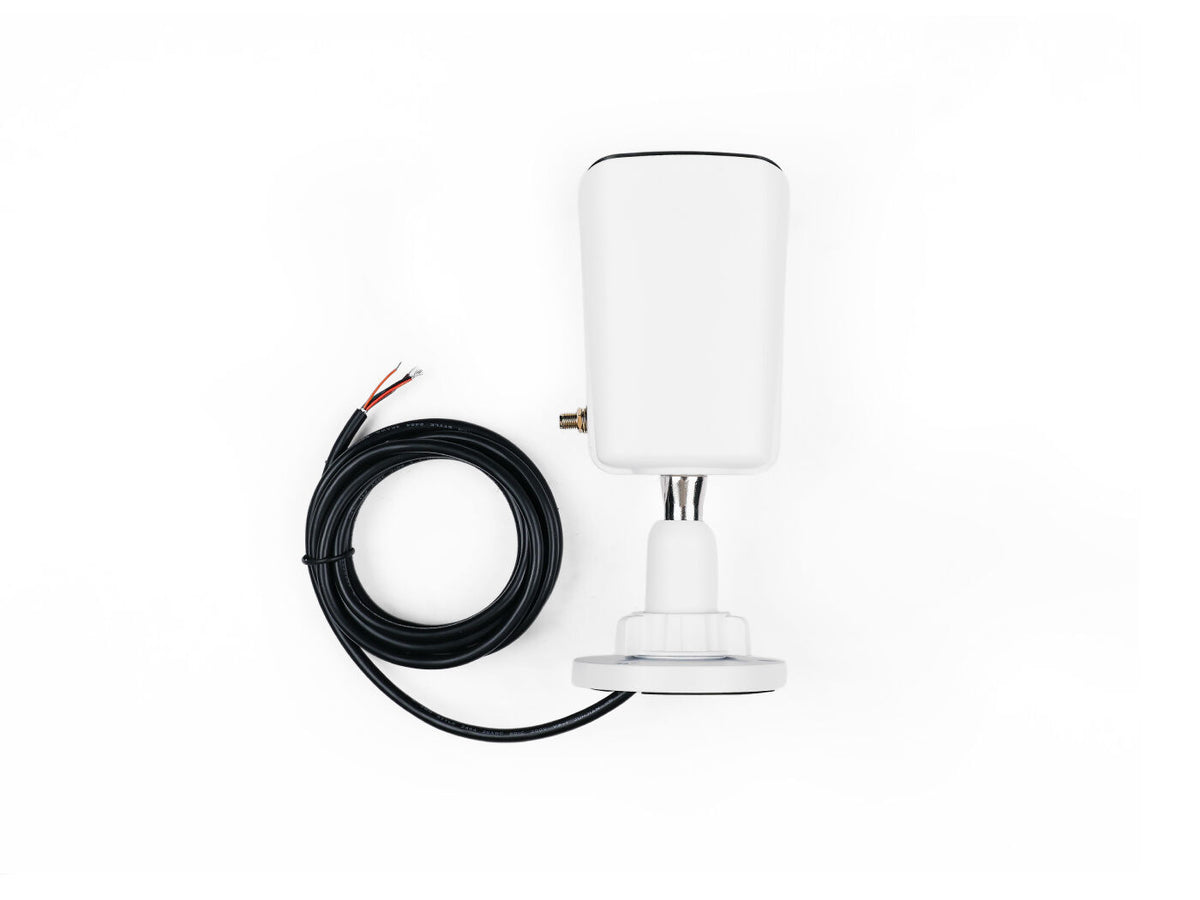

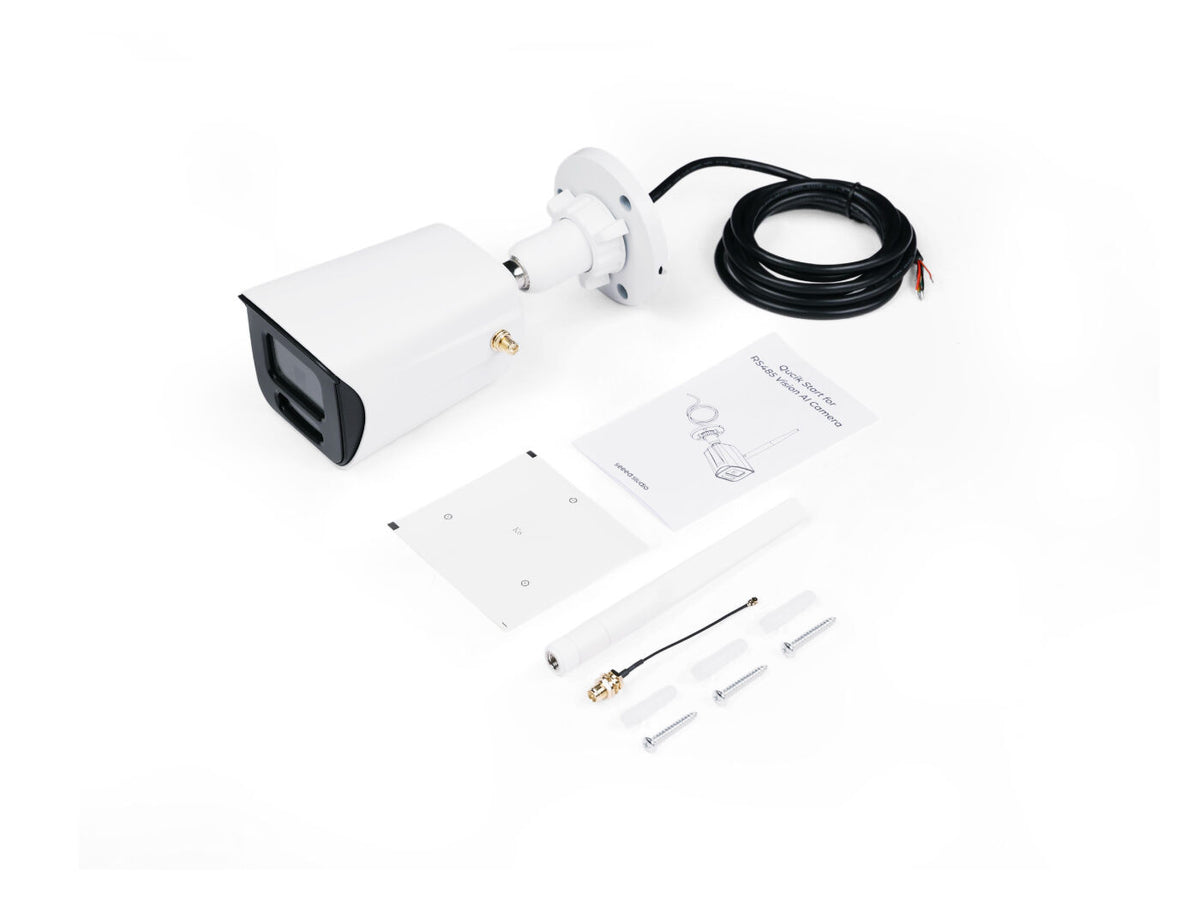

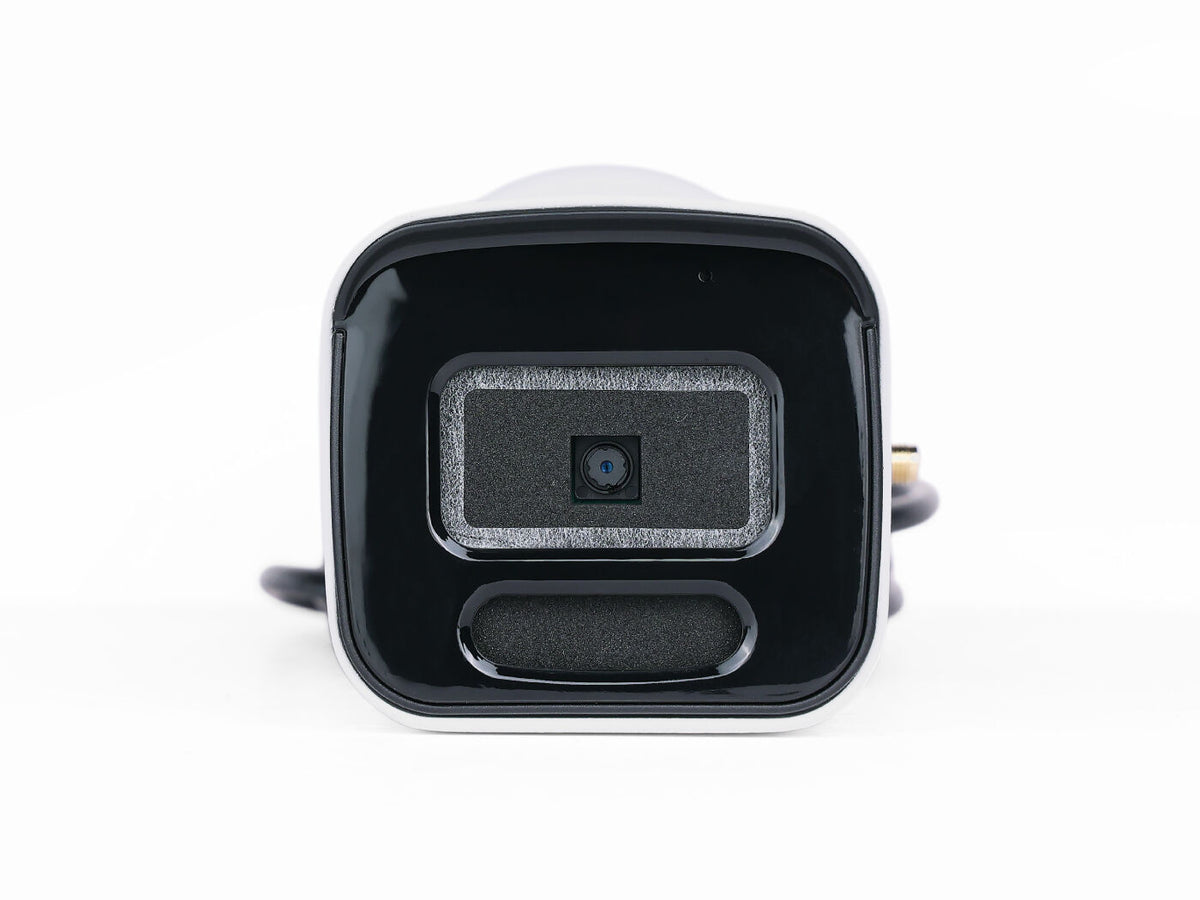

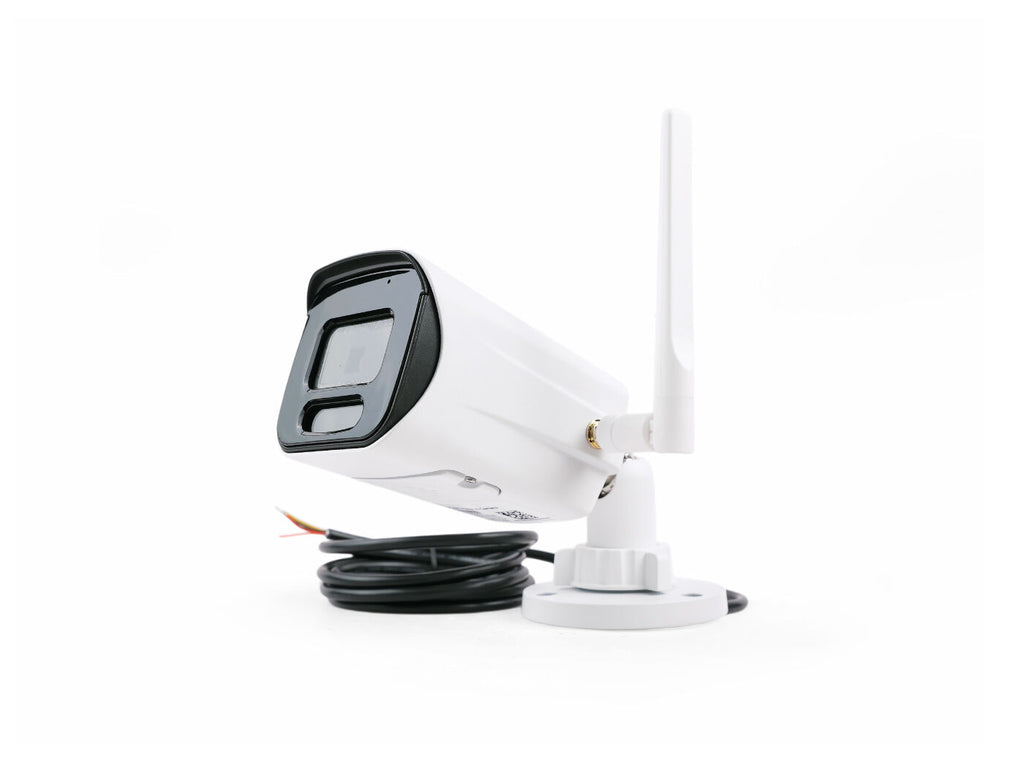

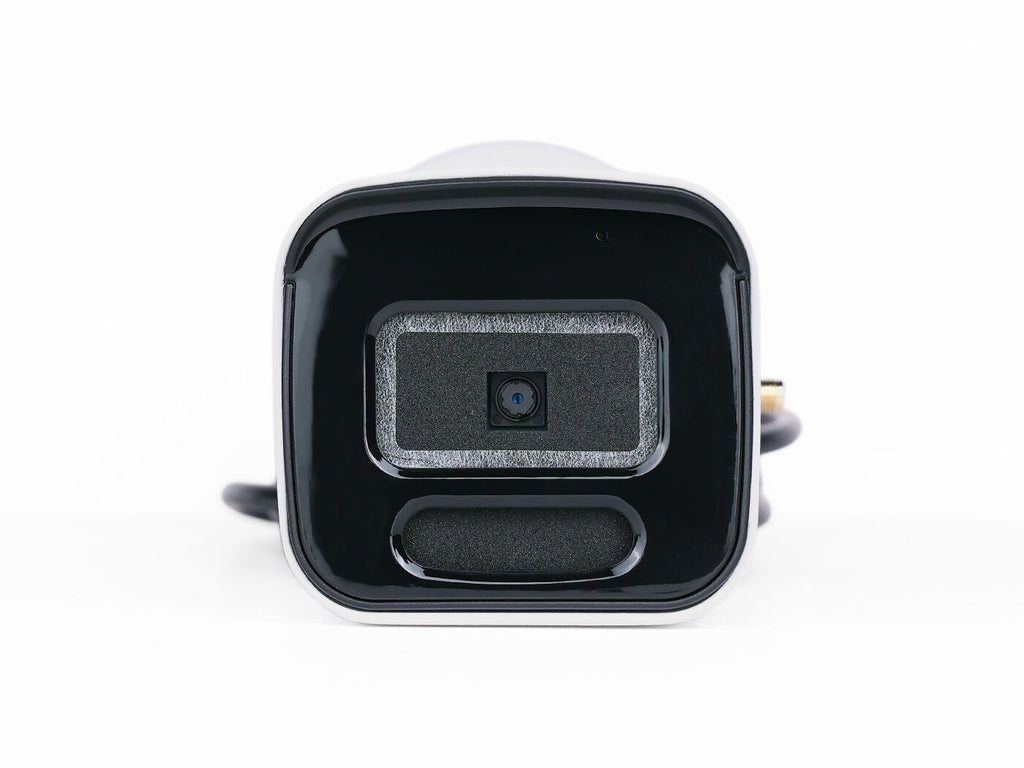

Modbus RS485 Vision AI Camera

The Seeed Studio RS485 Vision AI Camera is an intelligent device that combines an ESP32-C3 MCU (Seeed Studio XIAO) with a Himax WiseEye2 HX6538 processor, featuring dual-core Arm Cortex-M55 and an integrated Ethos-U55 neural processor. This advanced camera delivers high-performance AI recognition at 480×480 resolution and 10 FPS, while maintaining low power consumption through flexible options for transmitting inference results.

With its standard Modbus RS485 interface, it seamlessly integrates with industrial systems and supports both LoRaWAN and 4G connectivity through SenseCAP DTUs or other standard RS485 DTU devices. Protected by an IP66-rated enclosure, it withstands harsh environmental conditions, making it ideal for both indoor and outdoor applications.

The camera excels in various computer vision tasks including headcount, object detection, and classification. Users can deploy models from over 300 pre-trained models or train custom models on the no-code SenseCraft AI platform, while AI models in TensorFlow and PyTorch frameworks are supported. Privacy concerns are addressed through its design to transmit only inference results, with optional Wi-Fi keyframe transmission when needed.
