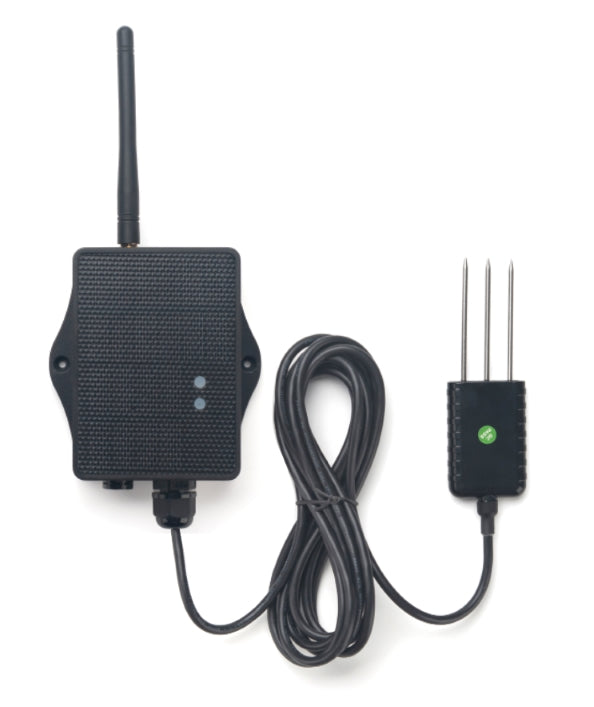

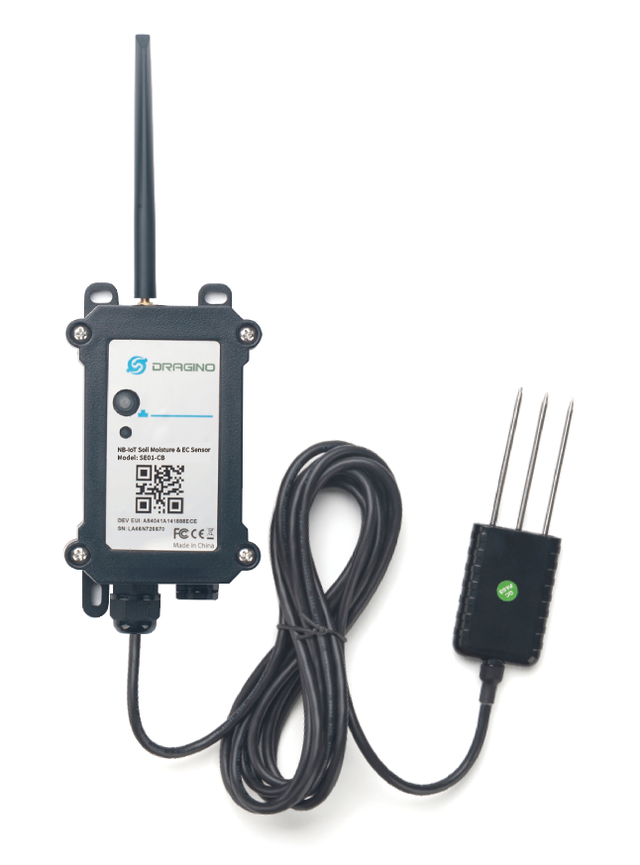

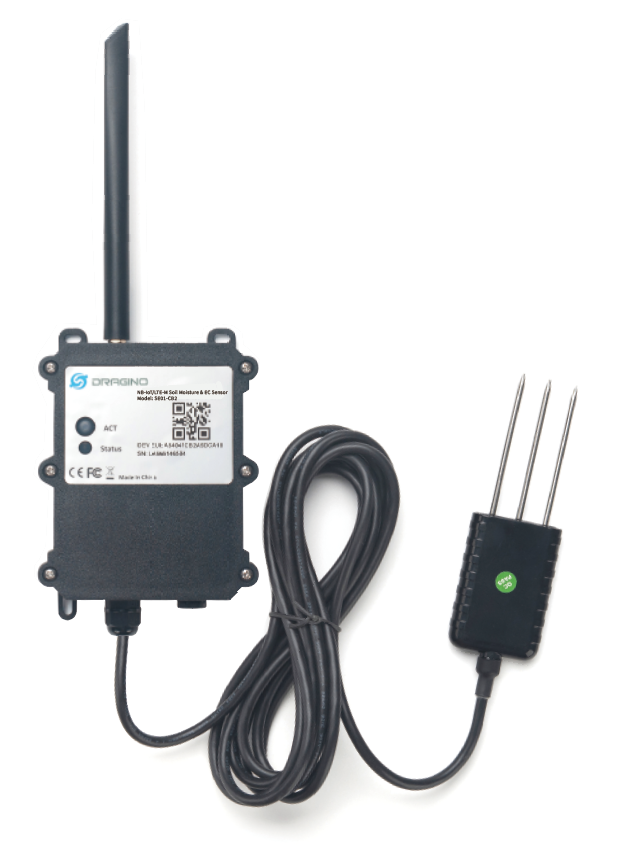

SE01-CX: CAT-M1/LTE-M Soil Moisture & EC Sensor

1/3

SE01-CX: CAT-M1/LTE-M Soil Moisture & EC Sensor

Features

Monitor soil mositure
Monitor soil temperature
Monitor soil conductivity
IP66 waterproof enclosure
Ultra-low power consumption
Supports Bluetooth v5.1 remote configuration
Supports OTA firmware updates
Uplinks periodically
GNSS for Location reporting
Downlink to change parameters

Backorder

£173.00

Description

The Dragino SE01-CX is a CAT-M1/LTE-M Soil Moisture & EC Sensor for IoT of Agriculture. It is designed to measure the soil moisture of saline-alkali soil and loamy soil. The soil sensor uses the FDR method to calculate the soil moisture with the compensation from soil temperature and conductivity. It has been calibrated in factory for Mineral soil type.

It detects Soil Moisture, Soil Temperature and Soil Conductivity, and uploads the value via wireless to an IoT Server.

The SE01-CX supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirements, and supports uplinks to various IoT Servers.

The SE01-CX supports BLE configuration and OTA updates which makes the device easy to use.

The SE01-CX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.
