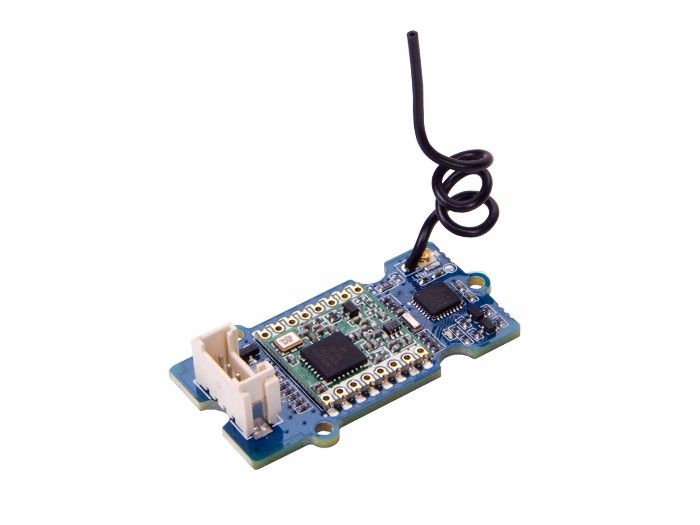

Grove: LoRa Radio

Using RFM95 module based on SX1276 Wio for Long Range Application Inputting voltage: 5V/3.3V ~28mA(Avg) @+20dBm continuous transmit ~8.4mA(Avg)@standby mode ~20mA(Avg) @receive mode, BW-500kHz

Grove is a very powerful platform developed by Seeed Studio to simplify your IoT projects.We have integrated the grove connector to most boards produced by Seeed to make them become a system. This time, we combined Grove with Long Range to provide an ultra-long-range wireless module for you.

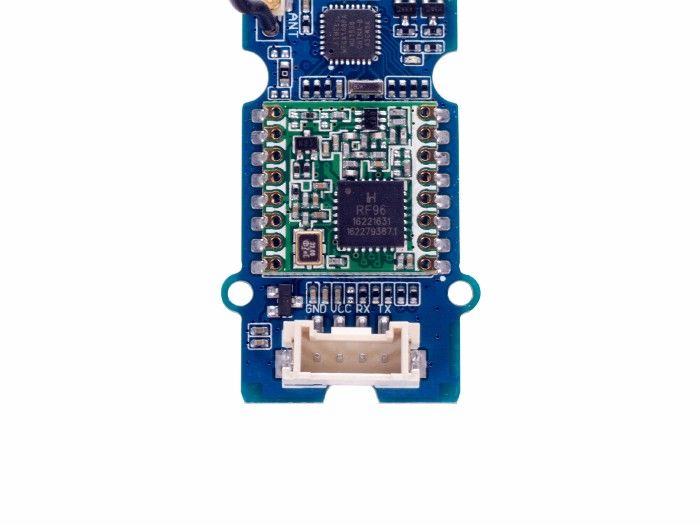

The main functional module in Grove - Long Range Radio 868MHz is RFM95, which is a transceiver features the Long Range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst mini-missing current consumption. The heart of Grove - Long Range Radio 868MHz is ATmega168, a widely used chip with very high-performance and low power consumption, especially suitable for this grove module.

There we already integrated a simple wire antenna to receive signal, if the signal is too weak to receive, don’t worry, the MHF connector next to the antenna is for adding a second antenna which has MHF interface to gain more signal.

This is the 868MHz version, which can be used for 868MHz communication
