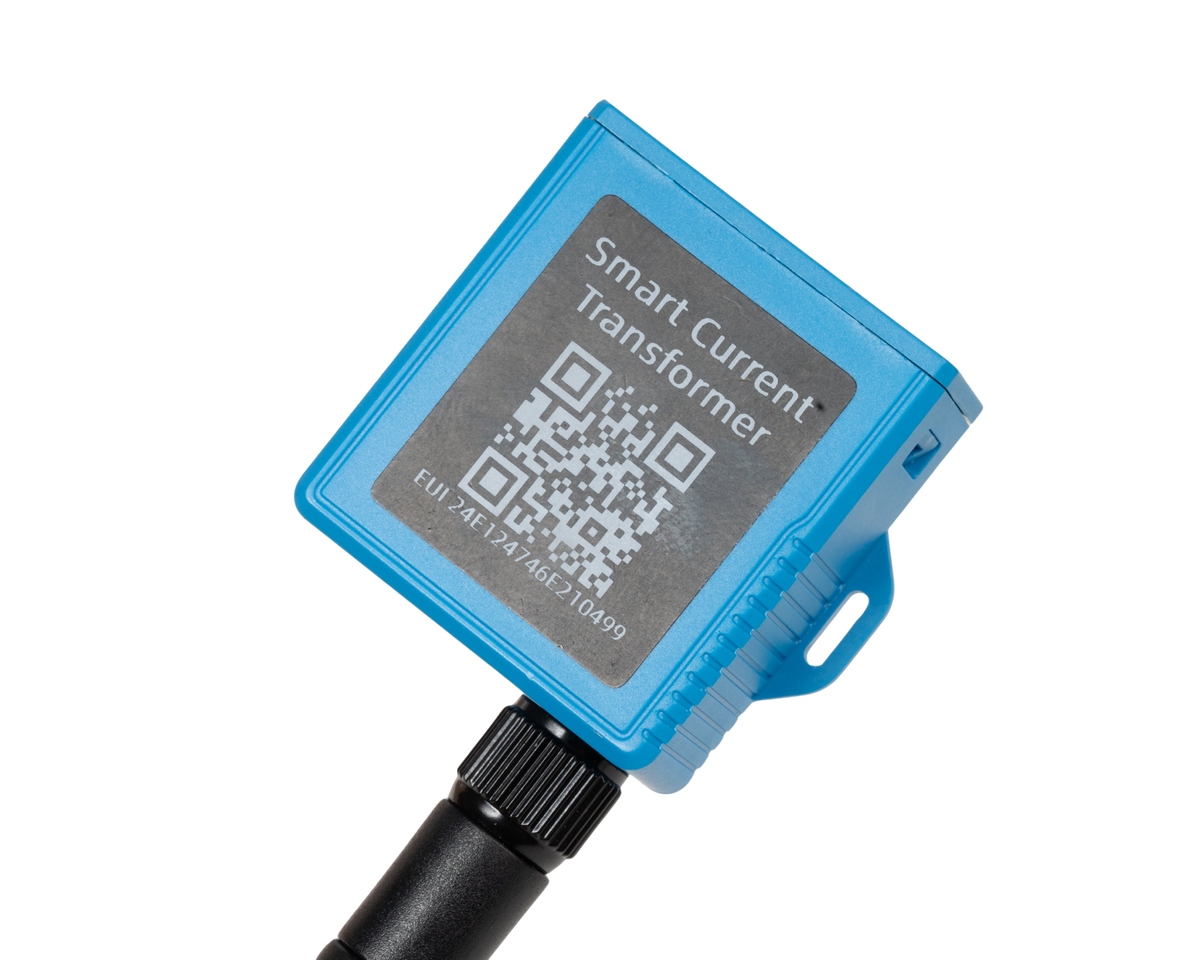

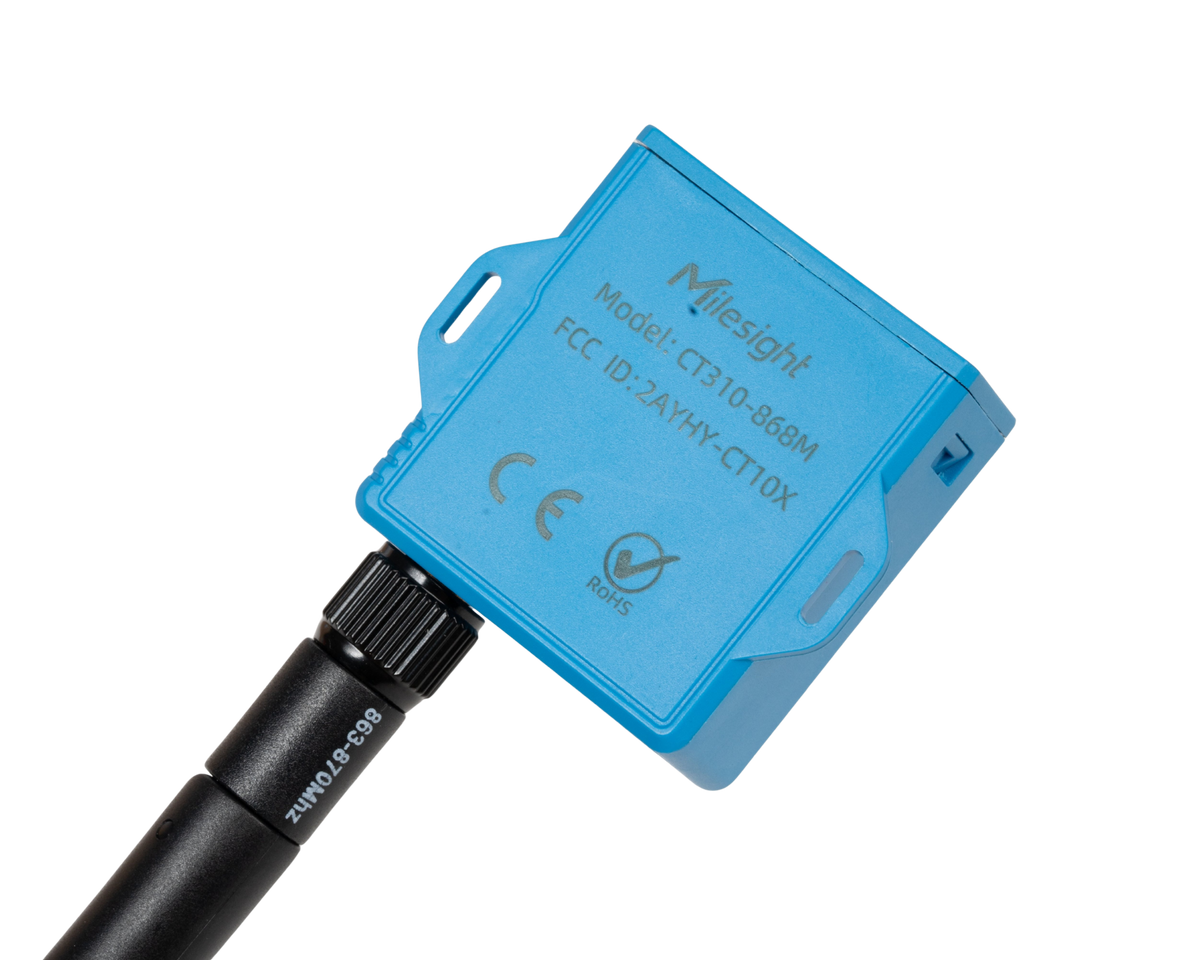

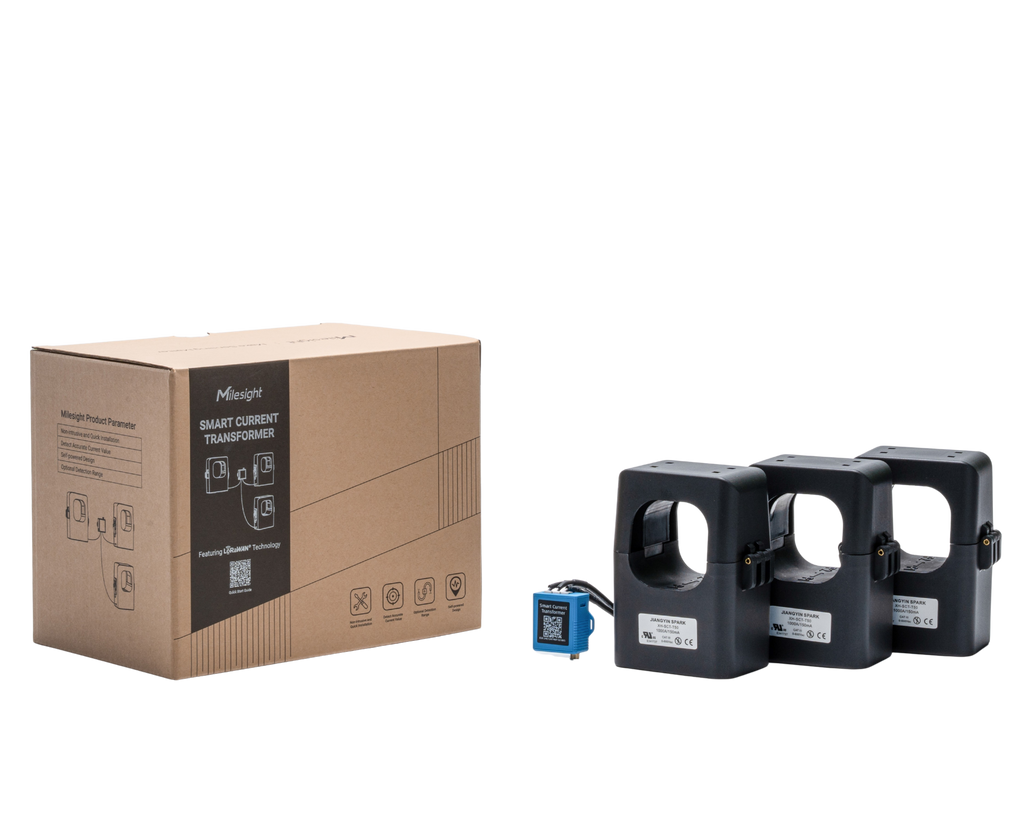

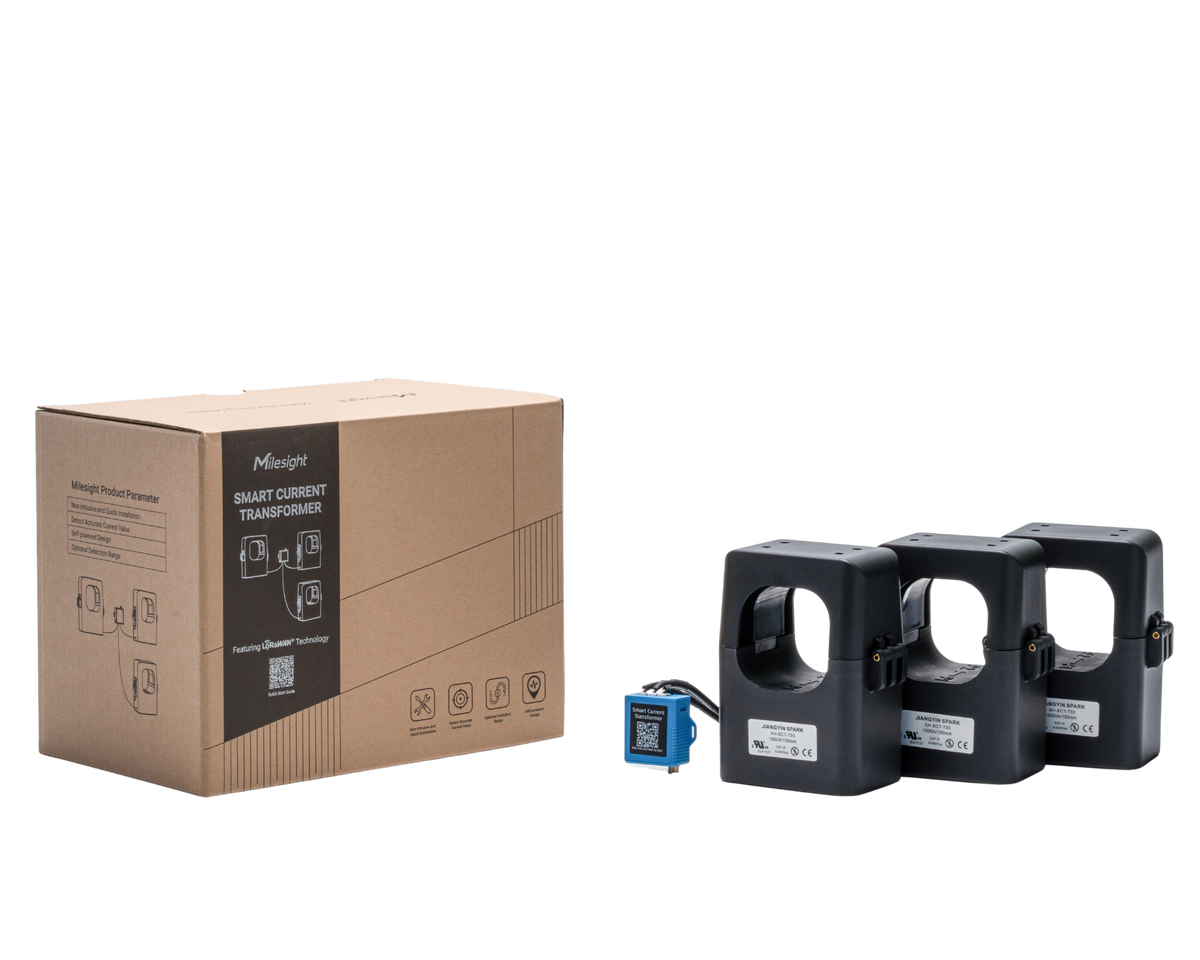

CT310: LoRaWAN Smart Current Transformer

Name: CT310: LoRaWAN Smart Current Transformer
Brand: Milesight
SKU: CT310-868M
Price: 266.00 GBP
Availability: InStock

1/4

CT310: LoRaWAN Smart Current Transformer

Features

Report the RMS current and accumulated current data by minutes
High measuring accuracy with a sampling frequency of up to 3.3 kHz
Rated Primary Current: 1000 Arms
Rated Secondary Current: 150 Arms
Start Current: 60 Arms
Self-powered, free from batteries or external wires
Utilises a sampling rate of up to 1s for real-time monitoring and quick alarm response
Non-invasive clamp design ensures easy and safe installation without the need for de-energising power
Equipped with an LED indicator to indicate working status and alarms
Supports external wire temperature sensor for cable temperature measurement

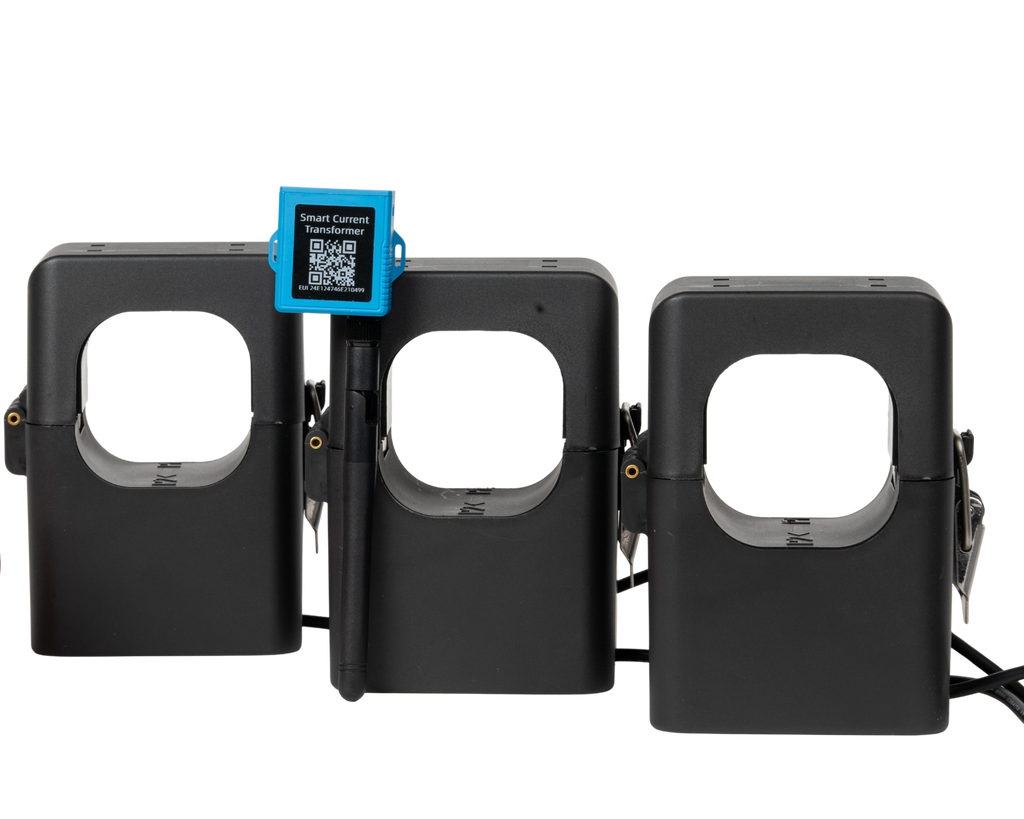

Enable simultaneous detection of three phases with a significantly wide optional detection range of 1000A
Compliant with standard LoRaWAN® gateways and network servers
Compliant with the Milesight IoT Cloud

Backorder

£266.00

Description

The CT310 is a LoRaWAN® Smart Current Transformer for monitoring energy consumption and analyzing usage remotely.

The CT310 provides multiple current options to suit energy monitoring and supports sending threshold alarms. Its compact size enables quick and safe installation in any indoor space without de-energizing facilities, thereby simplifying installation and saving costs.

Compliant with Milesight LoRaWAN® gateways and the Milesight Development Platform solution, the CT310 can be conveniently monitored via webpage remotely.

The CT310 is widely used for energy monitoring in smart buildings, machine failure detection and prevention, etc…
