Wio-E5: Wireless Module

Name: Wio-E5: Wireless Module
Brand: Seeed
SKU: 317990829
Price: 7.00 GBP
Availability: InStock

1/3

Wio-E5: Wireless Module

Features

High Performance: The transmit power up to 22dBm @868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW.
Long Distance Use: 158dB link budget.
Wireless Connectivity: Embedded Long Range protocol, supports global Long Range frequency plan.
Abundant peripherals: Equipped with a variety of GPIO interfaces like UART, I2C, and ADC, this module offers great flexibility for developers looking to expand peripherals.
Easy to Use: Has built-in AT command firmware and supports custom product development using an SDK.
FCC, CE, IC, Telec, WPC and RCM Certified

Backorder

£7.00

Description

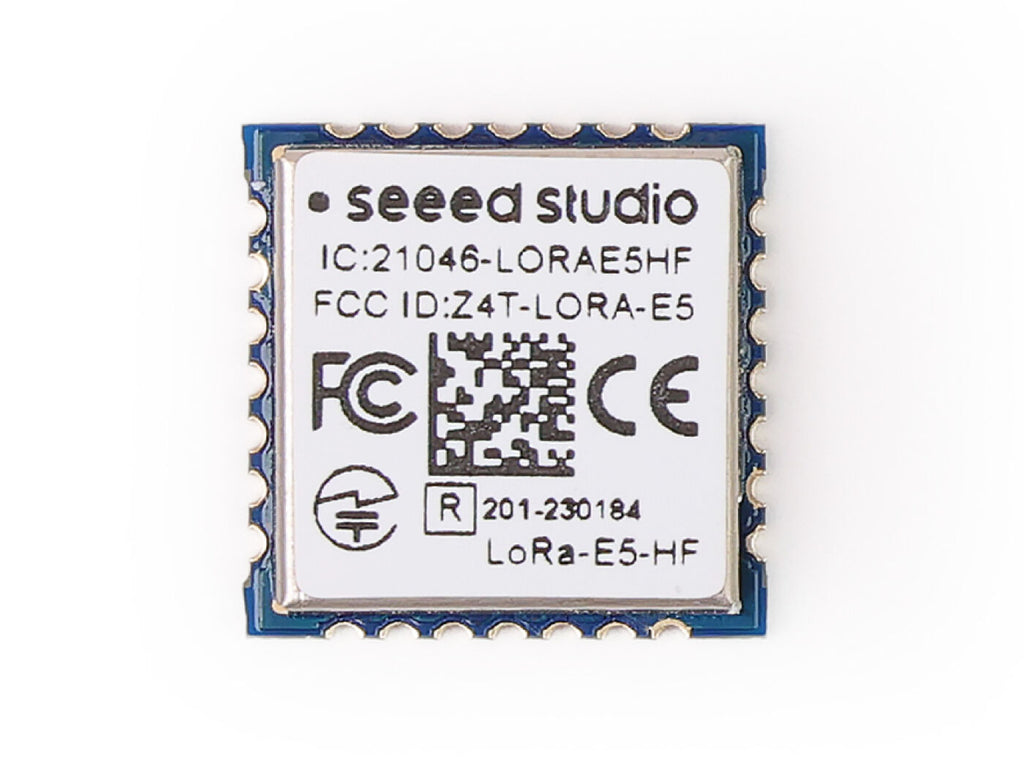

The Wio-E5 wireless LoRa module is embedded with the ST system-level package chip STM32WLE5JC, ARM Cortex M4 ultra-low power MCU, and Long Range SX126X. It supports EU868, US915 and more, making it suitable for wireless sensor networks and other IoT devices that require battery power, low power consumption and long range.

This ultra-compact module has extremely low power consumption and is capable of supporting both (G)FSK and Long Range. Its built-in AT command firmware, makes it easy for developers to build their prototypes or applications. It can easily support LoRaWAN® protocols and a variety of frequency plans, making it an ideal solution for Long Range sensor nodes and a range of wireless communication applications. Whether you need to set up Wireless Meter Reading, IoT Nodes, or a Sensor Network, the Wio-E5 is perfectly suited for low power wide area IoT scenarios.

With this module, you can connect to different LoRaWAN server platforms like TheThingsStack, Chirpstack, and others.
