Wio-E5-LE: Wireless Module

Features
  • Ultra-Low Power Consumption: In transmit mode, the operating current is only 26mA.
  • High Performance: The transmit power is 14dBm @868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW
  • Long-Distance Communication: Benefit from a 158dB link budget to ensure a seamless connection over extended distances.

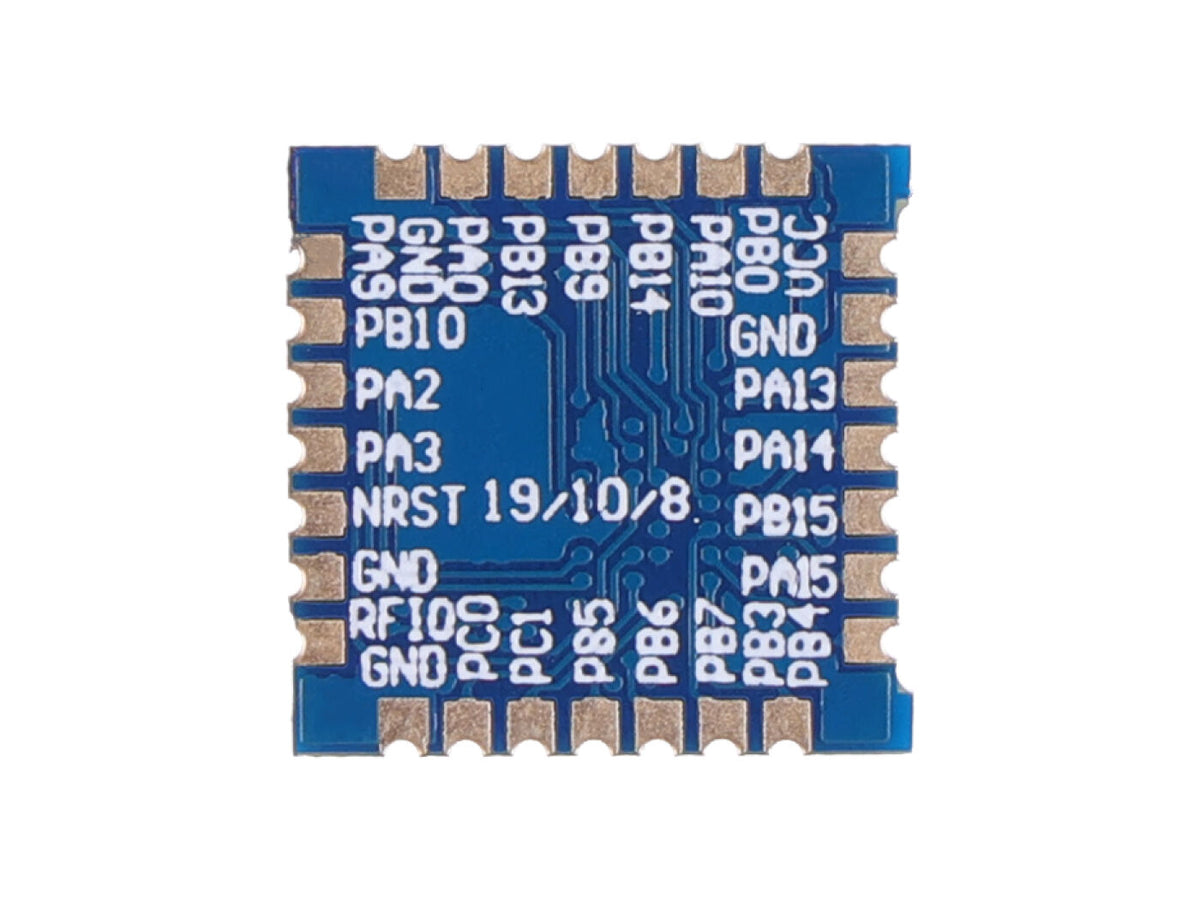

  • Abundant peripherals: Equipped with a variety of GPIO interfaces like UART, I2C, and ADC, this module offers great flexibility for developers looking to expand peripherals.
  • Certified and Trusted: Wio-E5-LE is FCC and CE-certified, guaranteeing compliance with regulations and standards.
  • Easy to Use: Has built-in AT command firmware and supports custom product development using an SDK.
 Backorder
£7.00
£7.00

Description

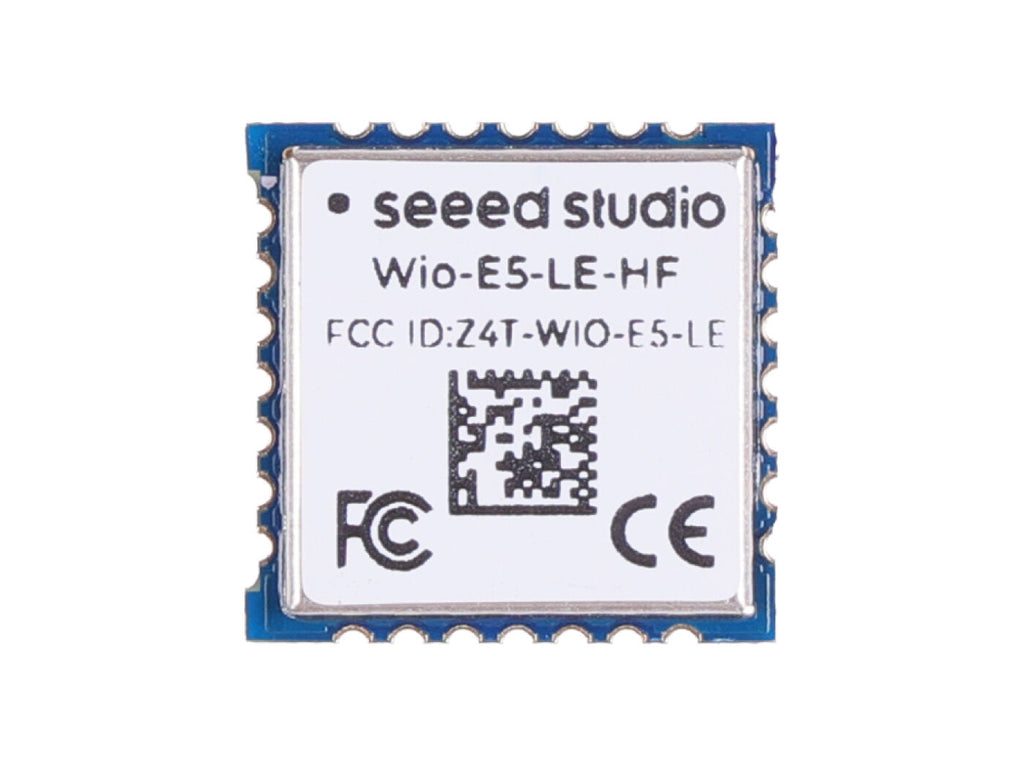

Wio-E5-LE module has a single-core STM32WLE5JC chip, Cortex M4 MCU, and SX126X. It uses 84% less power for transmission compared to the Wio-E5. The ultra-low power consumption of the Wio-E5-LE makes it very energy efficient, this power-saving design makes the Wio-E5-LE well-suited for applications needing minimal power usage.

This compact unit offers versatile (G)FSK and Long Range support, compatibility with LoRaWAN® Class A/B/C protocols, and a broad frequency range including EU868/US915/AU915/AS923/KR920/IN865. Easily connect with LoRaWAN servers like TheThingsStack and Chirpstack.
