WSS-27: PAR (Photosynthetically Available Radiation) Sensor
  • WSS-27: PAR (Photosynthetically Available Radiation) Sensor
WSS-27: PAR (Photosynthetically Available Radiation) Sensor

Features
  • Input Power: DC 5 ~ 24v
  • Interface: RS485
  • Resolution: 1?mol/m2•s
  • Working Temperature: -30°C ~ 75°C
  • Measure range: 0 ~ 2500?mol/m2•s
  • Accuracy: ±2%
  • Yearly Stability: ?±2%
  • Working Humidity: 10 ~ 90%RH
  • Response Spectrum: 400 ~ 700nm
  • Power Consumption: 3mA @ 12v
 Backorder
£270.00
£270.00

Description

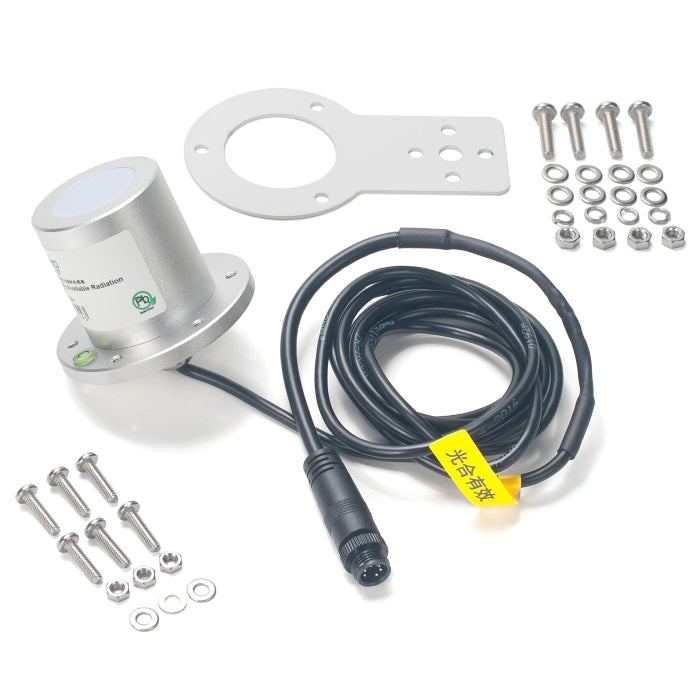

The WSS-27 photosynthetically active radiation sensor is mainly used to measure the photosynthetically active radiation of natural light in the wavelength range of 400-700nm.

The WSS-27 uses precision optical detectors and has an optical filter of 400-700nm. When natural light is irradiated, a voltage signal proportional to the intensity of the incident radiation is generated, and its luminous flux density is proportional to the cosine of the direct angle of the incident light.
