WSC2-N: NB-IoT Weather Station Main Processing Unit
1/2
  • WSC2-N: NB-IoT Weather Station Main Processing Unit
  • WSC2-N: NB-IoT Weather Station Main Processing Unit
WSC2-N: NB-IoT Weather Station Main Processing Unit

Features

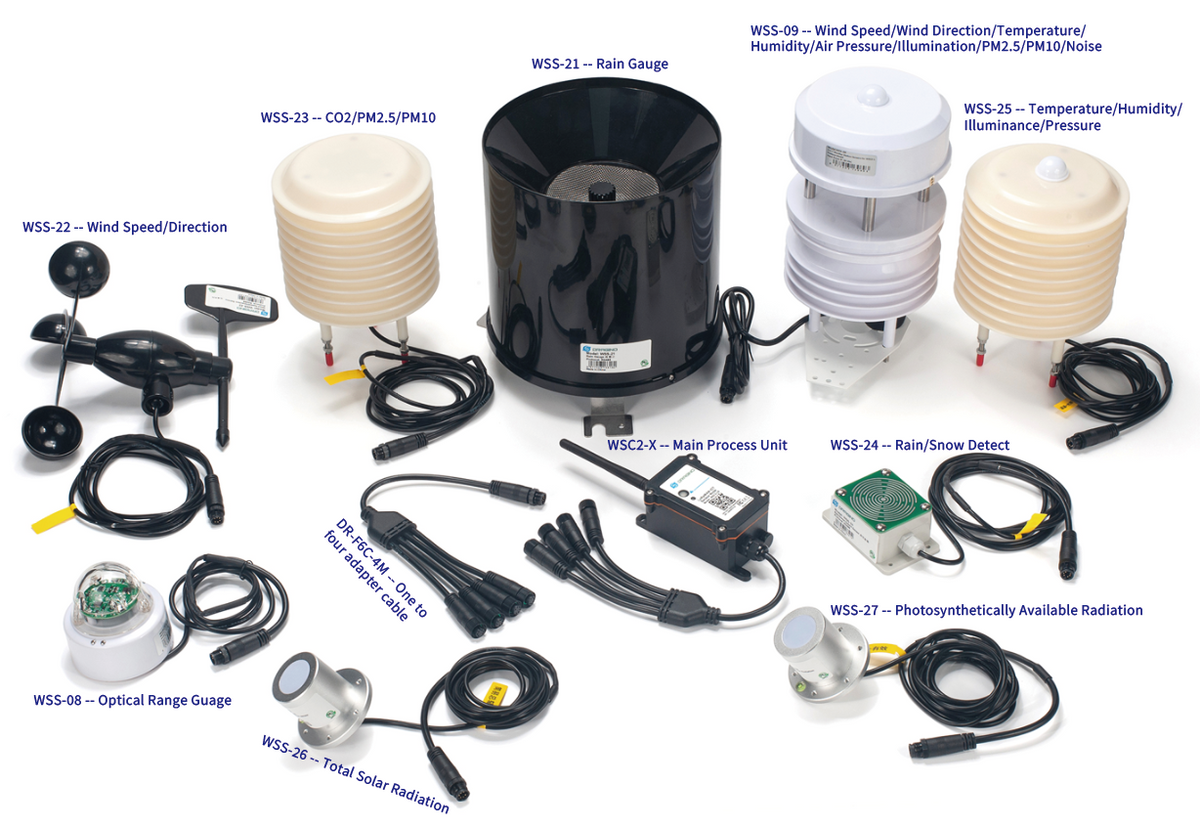

  • Supports external weather sensors (WSS21 -WSS-27)
  • Supports external 9 in 1 weather sensor(WSS-09)
  • Supports tipping bucket Rain Gauge (WSS-08)
  • RS485 interface for 3rd party sensors
  • 1000mAh Rechargeable Li-ion battery
  • Input and Recharge power : 12v
  • Supports Bluetooth v5.1 remote configuration
  • Supports OTA firmware updates
  • Uplinks periodically
  • Downlink to change parameters
 Backorder
£108.00
£108.00

Description

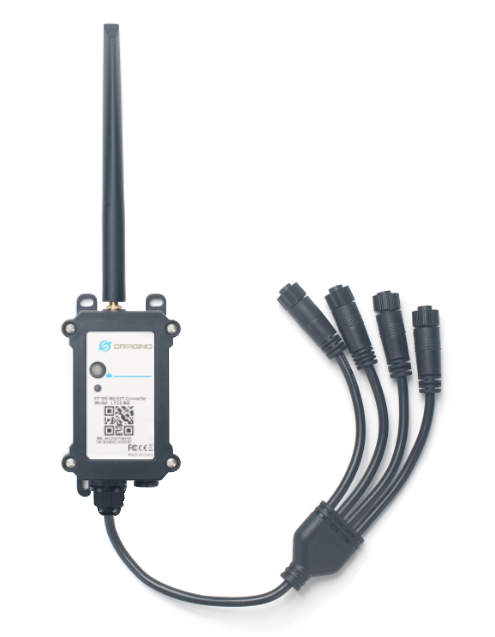

The Dragino WSC2-N is the main unit in the Dragino Weather Station solution designed for measuring atmospheric conditions to provide information for weather forecasts and to study the weather and climate.

The WSC2-N can read values from various sensors and upload theis sensor data to an IoT server via the  NB-IoTwireless protocol.

The WSC2-N supports input and 12V rechargeable power and has a built in 1000mAh rechargeable Li-ion battery. lf the users needs to connect other sensors, the external power supply is required.

The WSC2-N supports connecting 3rd party RS485 multiple sensors. Users can purchase DR-F6C-4M one-to-four cables to connect more sensors according to their needs.

A high-performance model designed for comprehensive environmental monitoring. It supports a wide range of sensors and is powered by an external solar panel, MPPT controller, and storage battery—ideal for demanding, long-term outdoor deployments in agriculture and field research.
