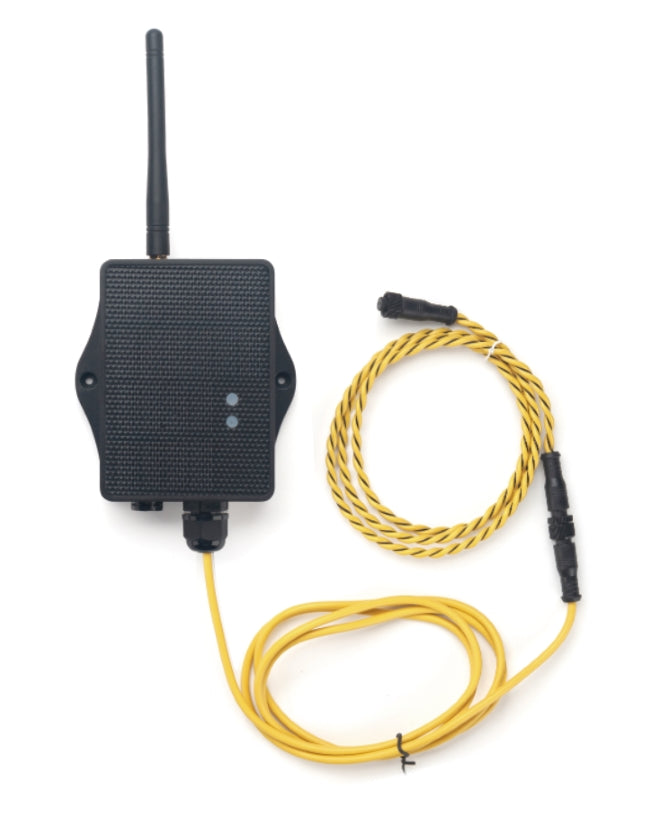

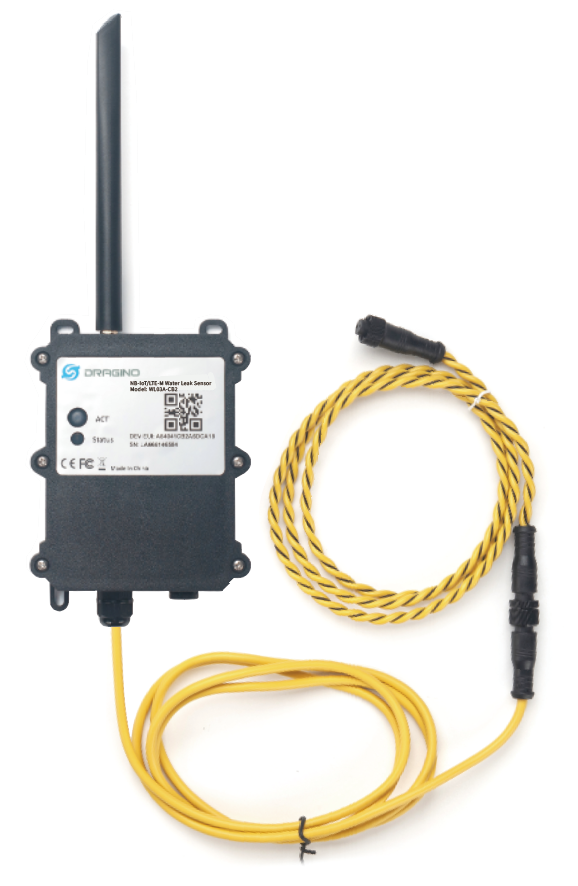

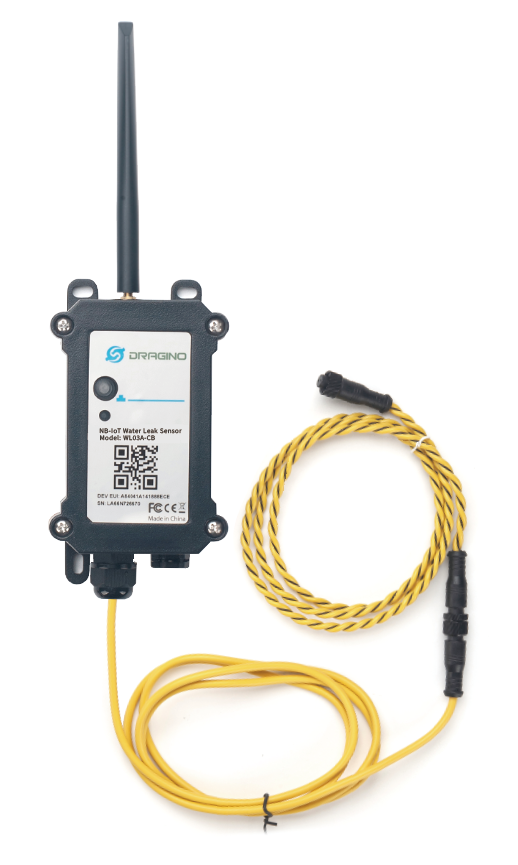

WL03A-CX: CAT-M1/LTE-M Non-Position Rope Type Water Leak Controller

The Dragino WL03A-CX is an CAT-M1/LTE-M Non-Position Rope Type Water Leak Controller. Users can lay the WL03A-CX + Water Leak Cable on the ground to detect water leakage. The water leak cable is sensitive, when there is water over the leak cable. The WL03A-CX will indicates a water leak event and uplink to an IoT server via the CAT-M1/LTE-M network.

The WL03A-CX will send data every 2 hours as well as for each water leak event. It also counts the water leak times and calculates the last water leak duration.

The WL03A-CX supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirements, and supports uplinks to various IoT Servers.

The WL03A-CX supports BLE configuration and OTA updates which makes the device easy to use.

The WL03A-CX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.
