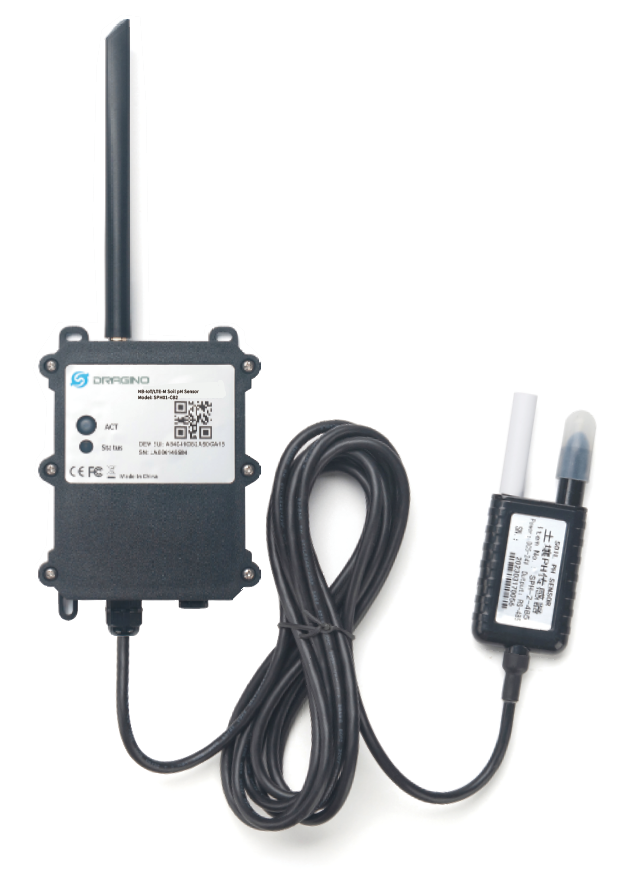

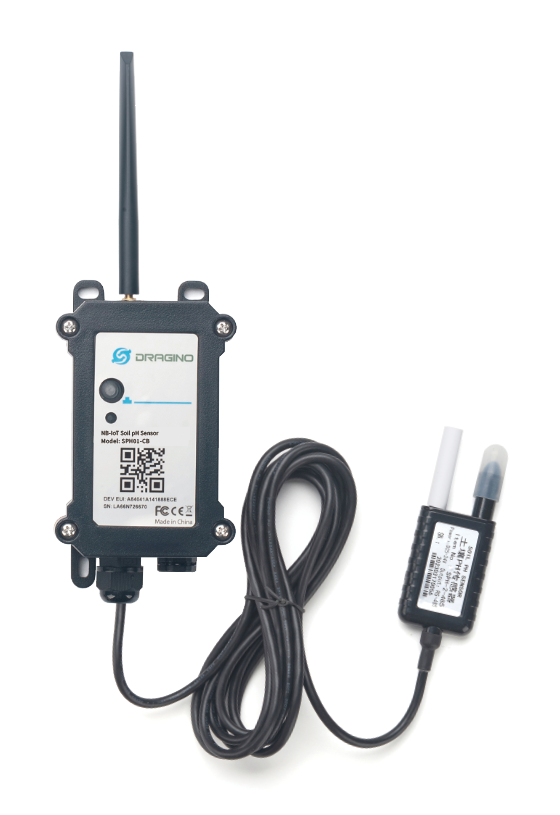

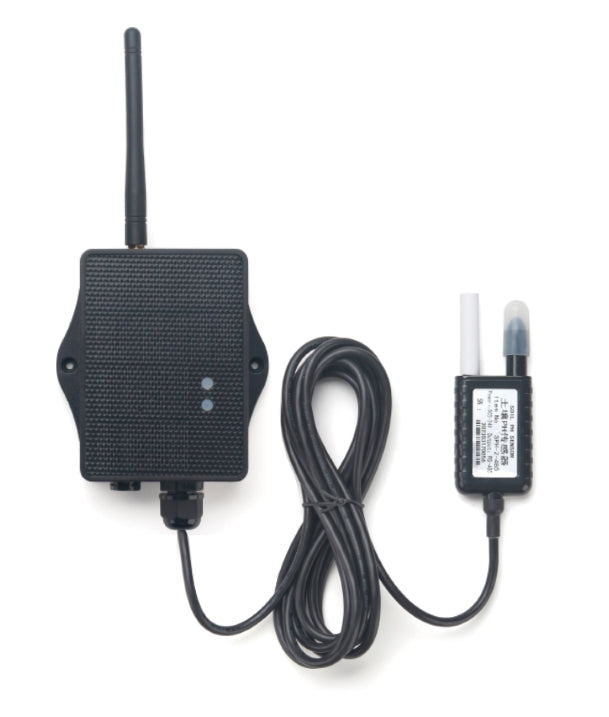

SPH01-CX: CAT-M1/LTE-M Soil pH Sensor

1/3

SPH01-CX: CAT-M1/LTE-M Soil pH Sensor

Features

Monitor soil pH with temperature compensation
Monitor soil temperature
Supports pH calibration by end user
IP66 waterproof enclosure
IP68 waterproof probe
Ultra-low power consumption
Supports Bluetooth v5.1 remote configuration
Supports OTA firmware updates
Uplinks periodically
GNSS for Location reporting
Downlink to change parameters

Backorder

£206.00

Description

The Dragino SPH01-CX is a CAT-M1/LTE-M Soil pH Sensor for IoT of Agriculture. It is designed to measure the soil PH and soil temperature, to send to the platform to analyze the soil acidity or alkali level. The probe is IP68 waterproof.

The SPH01-CX probe is made of a Solid AgCl reference electrode and Pure metal pH sensitive electrode. It can detect the soil’s pH with high accuracy and stable values. The SPH01-CX probe can be buried into soil for long term use.

The SPH01-CX supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirements, and supports uplinks to various IoT Servers.

The SPH01-CX supports BLE configuration and OTA updates which makes the device easy to use.

The SPH01-CX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.
