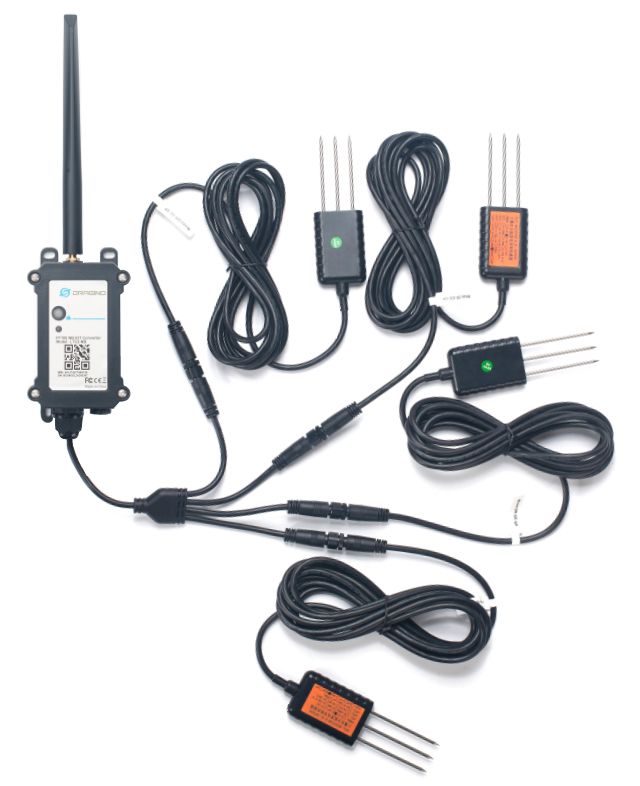

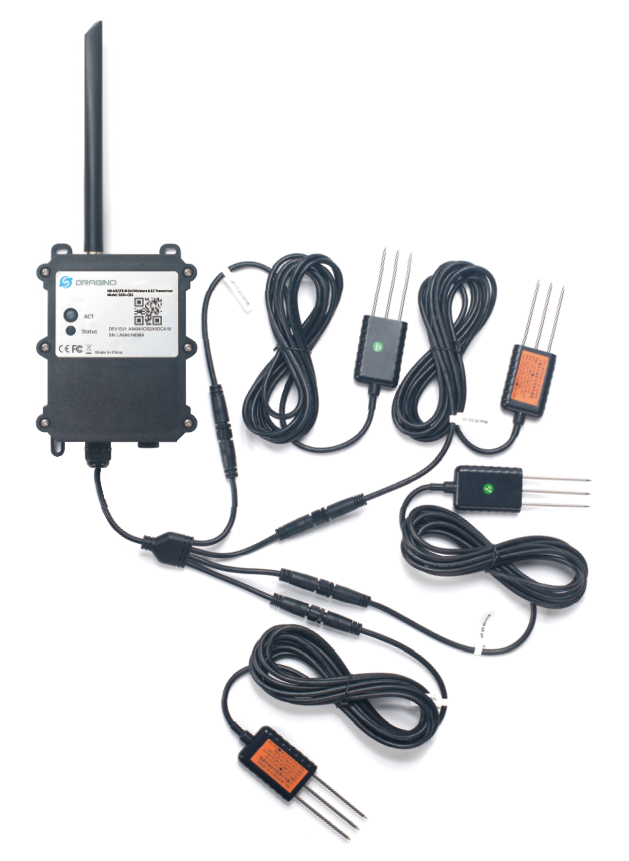

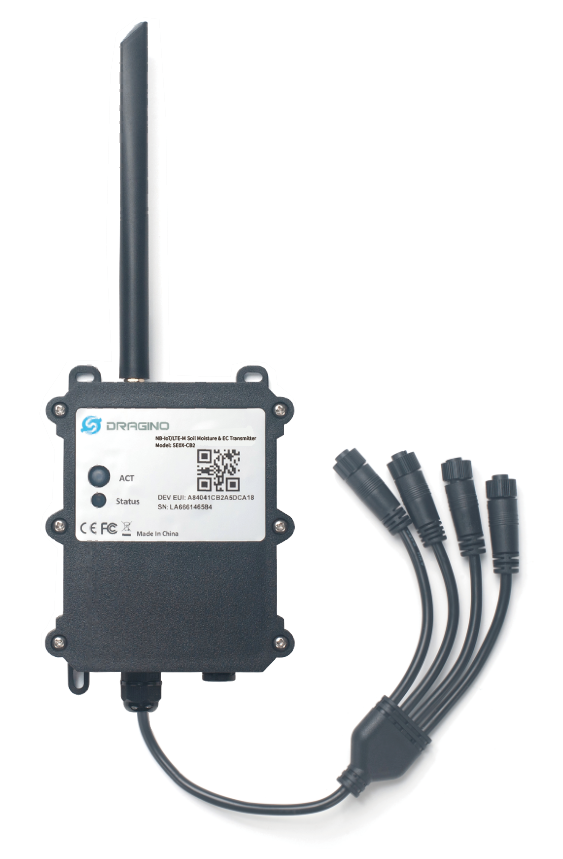

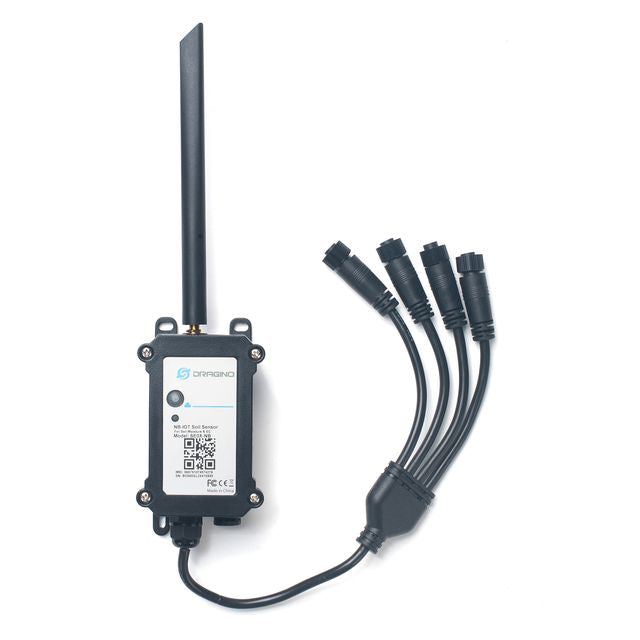

SE0X-CX: CAT-M1/LTE-M Soil Moisture & EC Sensor

1/6

SE0X-CX: CAT-M1/LTE-M Soil Moisture & EC Sensor

Features

Add up to 4 external probes
Monitor soil mositure
Monitor soil temperature
Monitor soil conductivity
IP66 waterproof enclosure
Ultra-low power consumption
Supports Bluetooth v5.1 remote configuration
Supports OTA firmware updates
Uplinks periodically
GNSS for Location reporting
Downlink to change parameters

Backorder

£98.00

Description

The Dragino SE0X-CX is a CAT-M1/LTE-M Soil Moisture & EC Sensor for IoT of Agriculture which can be equipped with up to 4 sensor probes. It is designed to measure the soil moisture of saline-alkali soil and loamy soil. The soil sensor uses FDR method to calculate the soil moisture with the compensation from soil temperature and conductivity. It also has been calibrated in factory for Mineral soil type.

It detects Soil Moisture, Soil Temperature and Soil Conductivity, and uploads the value via wireless to an CAT-M1/LTE-M Server.

The SE0X-CX supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirements, and supports uplinks to various IoT Servers.

The SE0X-CX supports BLE configuration and OTA updates which makes the device easy to use.

The SE0X-CX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.

Please Note:
This listing is for the main processing unit only. Probes must be purchased separately.
