S31B-CX: CAT-M1/LTE-M Outdoor Temperature and Humidity Sensor

1/4

S31B-CX: CAT-M1/LTE-M Outdoor Temperature and Humidity Sensor

Features

Temperature sensor range: -40 ~ 80°c
Temperature sensor accuracy: ±0.2 @ 0-80°c
Humidity sensor range: 0 ~ 99.9% RH
Humidity sensor accuracy: ±2%RH @ 0-100%RH
Temperature and humidity alarm
Ultra-low power consumption
Supports Bluetooth v5.1 remote configuration
Supports OTA firmware updates
Uplinks periodically
GNSS for Location reporting
Downlink to change parameters

Backorder

£87.00

Description

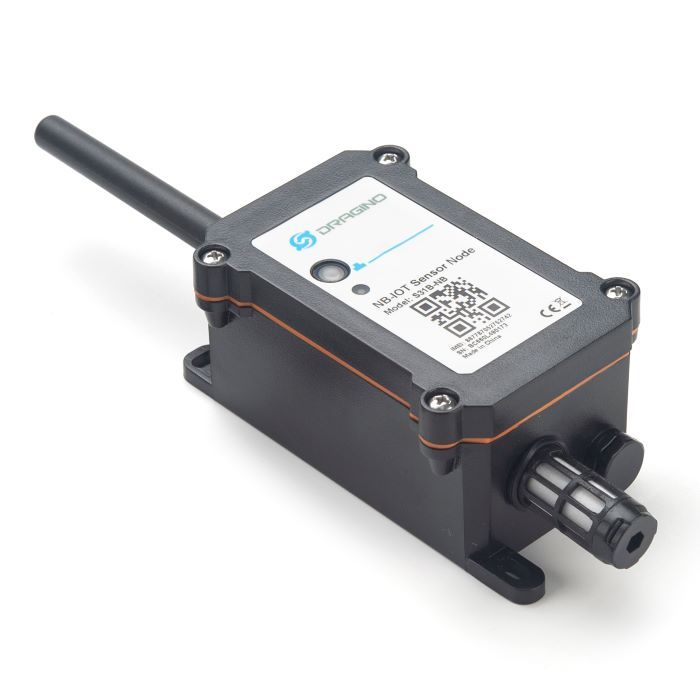

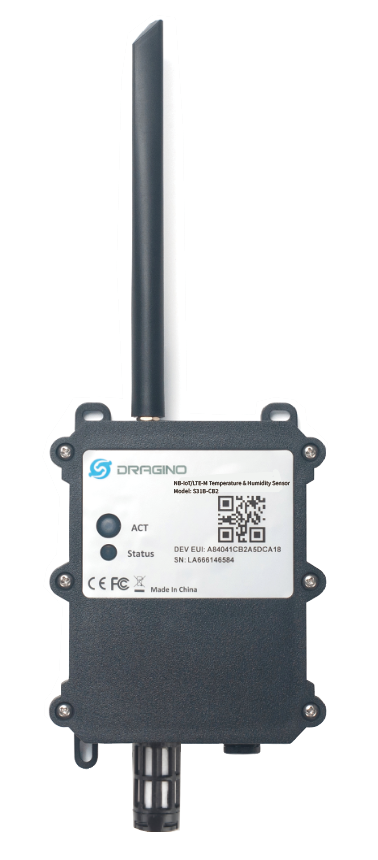

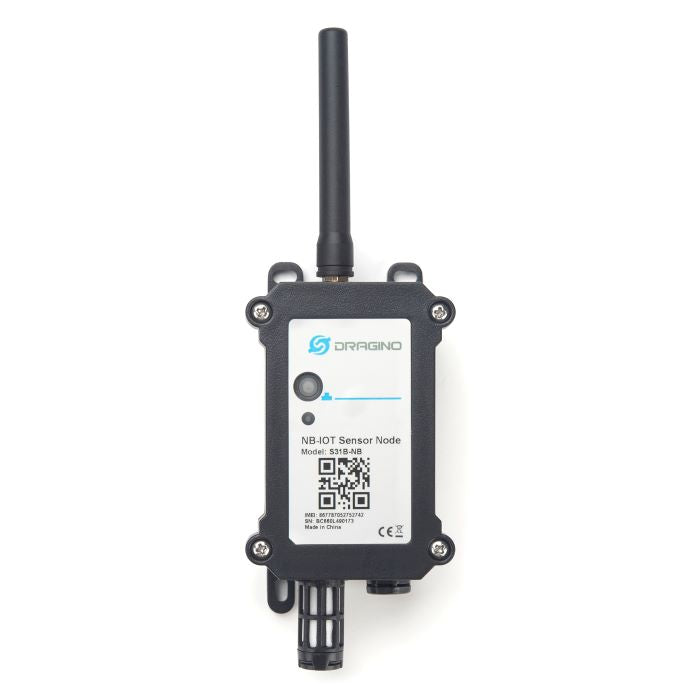

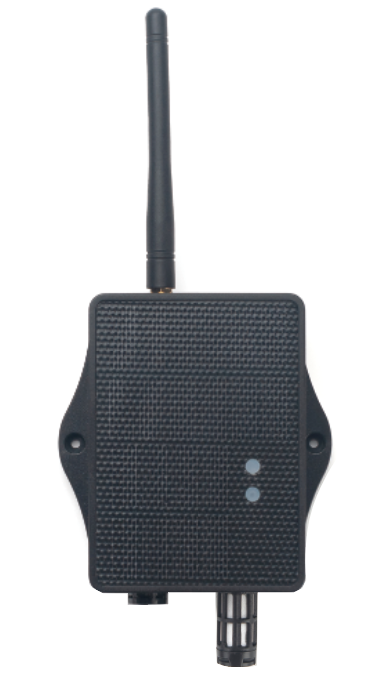

The Dragino S31B-CX is an CAT-M1/LTE-M Temperature and Humidity Sensor for Internet of Things solutions. It is used to measure the surrounding environment temperature and relative air humidity precisely, and then upload to an IoT server via the CAT-M1/LTE-M network.

The temperature & humidity sensor used in S31B-CX is an SHT31, which is a fully calibrated, linearized, and temperature compensated digital output from Sensirion. It provides strong reliability and long-term stability. The SHT31 is fixed in a waterproof anti-condensation casing for long term use.

The S31B-CX supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirements, and supports uplinks to various IoT Servers.

The S31B-CX supports BLE configuration and OTA updates which makes the device easy to use.

The S31B-CX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.
