PS-NX-NA: NB-IoT Analog Sensor

1/3

PS-NX-NA: NB-IoT Analog Sensor

Features

1x 0~20mA input, 1x 0~30V input
5V and 12V output to power external sensor
Monitor battery level
Ultra-low power consumption
Supports Bluetooth v5.1 remote configuration
Supports OTA firmware updates
Uplinks periodically
Downlink to change parameters

Backorder

£76.00

Description

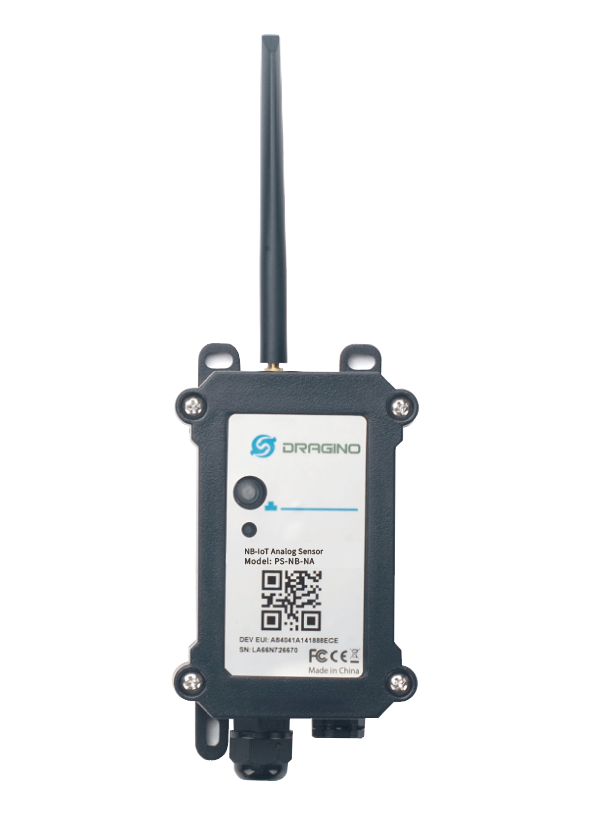

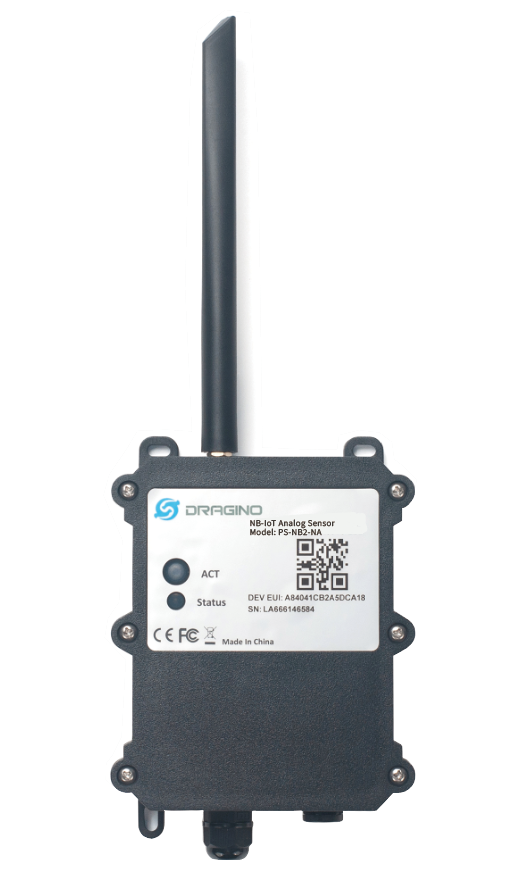

The Dragino PS-NX-NA is a NB-IoT Analog Sensor for Internet of Things solutions. The PS-NX-NA has a 5v and 12v output, 4~20mA, 0~30v input interface to power and receive values from Analog Sensor. The PS-NX-NA will convert the Analog Value to NB-IoT wireless data and send to an IoT platform via the NB-IoT network.

The PS-NX-NA supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirements, and supports uplinks to various IoT Servers.

The PS-NX-NA supports BLE configuration and OTA updates which makes the device easy to use.

The PS-NX-NA is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.
