LPS8N/LPS8N-EC25-E: Indoor LoRaWAN Gateway
LPS8N/LPS8N-EC25-E: Indoor LoRaWAN Gateway

LPS8N/LPS8N-EC25-E: Indoor LoRaWAN Gateway

Wi-Fi/Ethernet
£206.00
£206.00
Skip to product information
LPS8N/LPS8N-EC25-E: Indoor LoRaWAN Gateway
1/3
  • LPS8N/LPS8N-EC25-E: Indoor LoRaWAN Gateway

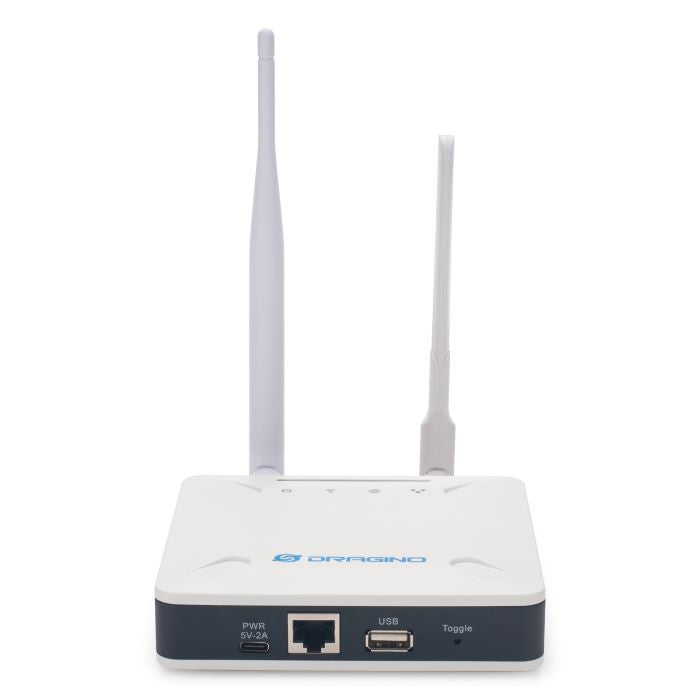

  • White gateway with antennas on a white background

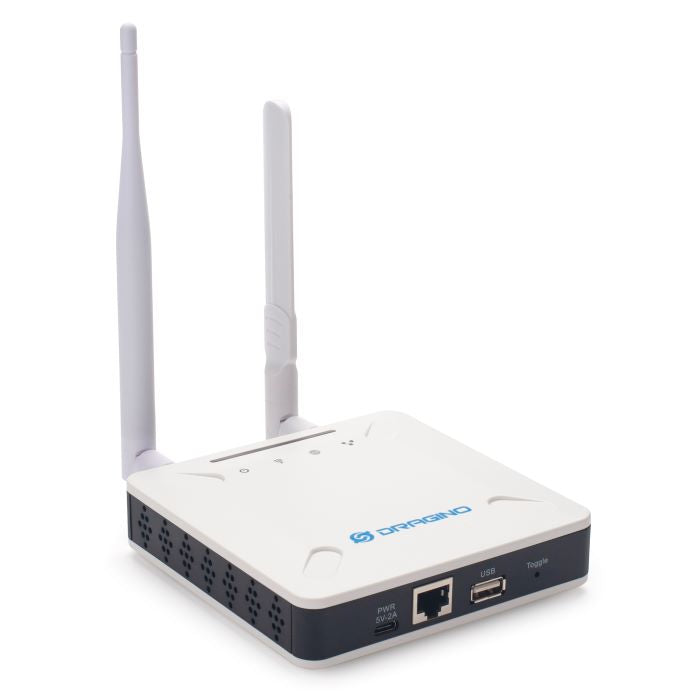

  • White gateway with antennas on a white background
LPS8N/LPS8N-EC25-E: Indoor LoRaWAN Gateway

Features
  • LoRaWAN Gateway
  • Supports different level log ins
  • Open source OpenWrt system
  • Supports LoRaWAN basic station
  • Emulates 49x LoRa demodulators
  • Supports Semtech packet forwarder
  • Optional 4G cellular connection
  • Managed by WebGUI, SSH via WAN or Wi-Fi
  • Remote access with Reverse-SSH or Remote.it
  • 10 programmable parallel demodulation paths
  • Supports local decode of ABP end node info and transfer to MQTT server
  • Pre-configured to support different LoRaWAN regional settings
  • Supports customization of LoRaWAN regional parameters
Connection Method
3 left
£206.00
£206.00

Description

The LPS8N is an open-source Indoor LoRaWAN Gateway. It allows users to bridge LoRa wireless networks to an IP network via WiFi or Ethernet. The LoRa wireless allows users to send data over extremely long ranges at low data rates.

The LPS8N uses a Semtech packet forwarder and is fully compatible with the LoRaWAN protocol. It includes an SX1302/03 LoRa concentrator, which provides 10 programmable parallel demodulation paths.

The LPS8N has pre-configured standard LoRaWAN frequency bands to use for different countries. Users can also customize the frequency bands to use in their own LoRa network.

The LPS8N has an optional cellular version that can provide 3G/4G connectivity to the internet (LPS8N-EC25-E).
