LDS40-CX: CAT-M1/LTE-M LiDAR ToF Distance Sensor

1/3

LDS40-CX: CAT-M1/LTE-M LiDAR ToF Distance Sensor

Features

Laser technology for distance detection
Measurement distance: 0.1 ~ 40m
FOV: 3°
Ultra-low power consumption
Supports Bluetooth v5.1 remote configuration
Supports OTA firmware updates
Uplinks periodically
GNSS for Location reporting
Downlink to change parameters

Backorder

£297.00

Description

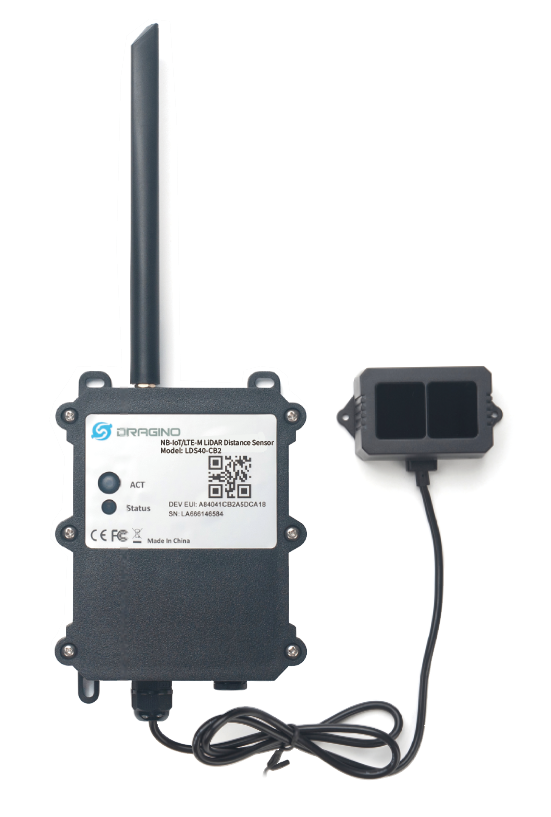

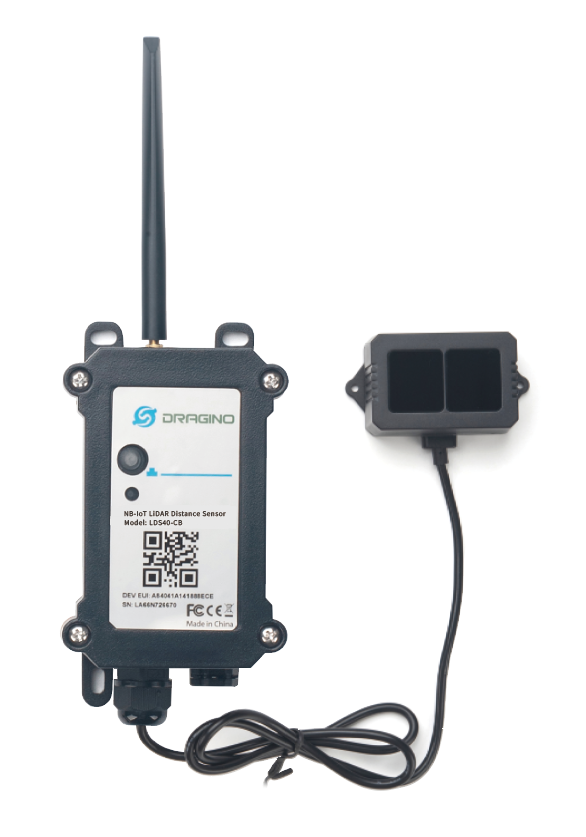

The Dragino LDS40-CX is an CAT-M1/LTE-M LiDAR ToF (Time of Flight) Distance Sensor for Internet of Things solutions. It is capable of measuring the distance to objects as close as 0m to 40m. The LiDAR probe uses laser induction technology for distance measurement.

The LDS40-CX can be applied to scenarios such as horizontal distance measurement, liquid level measurement, parking management systems, object proximity and presence detection, intelligent trash can management systems, robot obstacle avoidance, automatic control, sewage systems, bottom water level monitoring, etc…

It detects the distance between the measured object and the sensor, and uploads the value via wireless to a NB-IoT Server.

The LDS40-CX supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirements, and supports uplinks to various IoT Servers.

The LDS40-CX supports BLE configuration and OTA updates which makes the device easy to use.

The LDS40-CX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.
