LDS25-NX NB-IoT LiDAR ToF Distance Auto Clean Sensor

1/4

LDS25-NX NB-IoT LiDAR ToF Distance Auto Clean Sensor

Features

Laser technology for distance detection
Self-contained auto-clean function
Measurement distance: 0.1 ~ 25m
Reflectivity: 90% (0.1 ~ 25m); 10% (0.1 ~ 12m)
Accuracy: ± 6cm (0.1 ~ 6m); ± 1% (6 ~ 25m)
Resolution: 1cm
FOV: 3°
Ultra-low power consumption
Supports Bluetooth v5.1 remote configuration
Supports OTA firmware updates
Uplinks periodically
Downlink to change parameters

Backorder

£315.00

Description

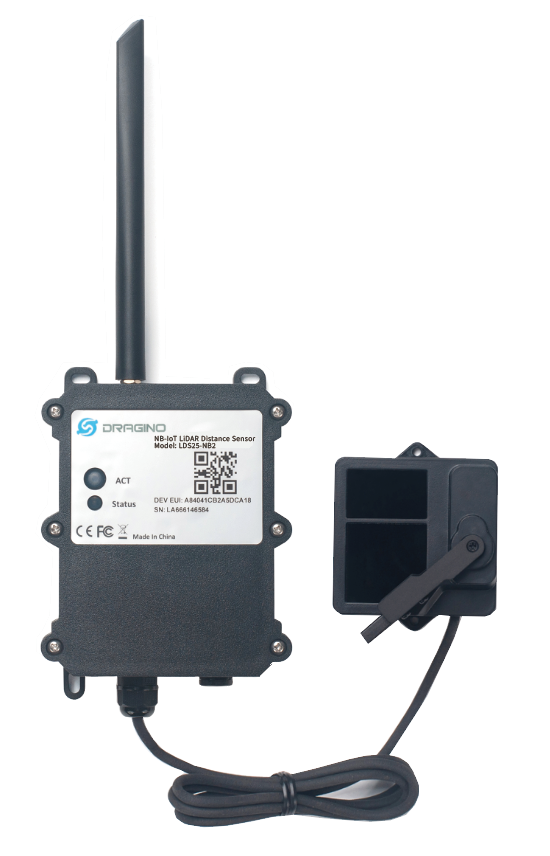

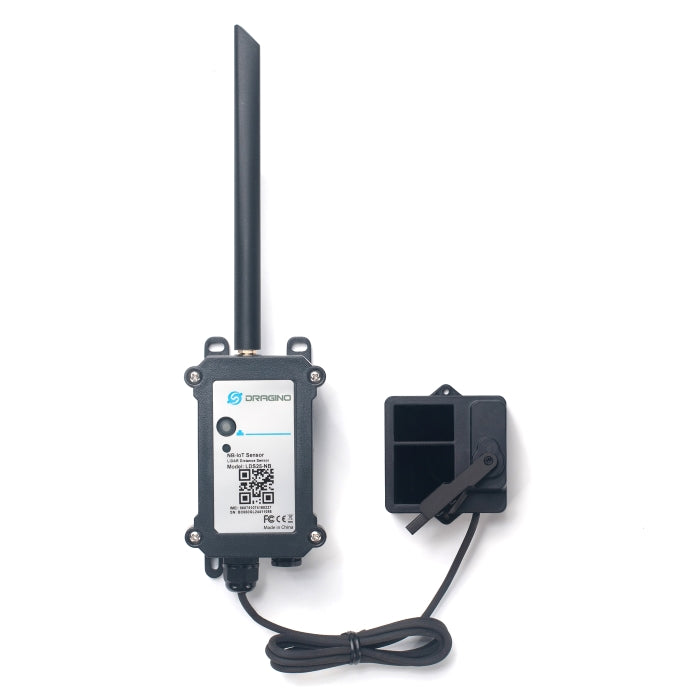

The Dragino LDS25-NX is a NB-IoT LiDAR ToF (Time of Flight) Distance Auto Clean Sensor for Internet of Things solutions. It is capable of measuring the distance to an object as close as 0m to 25m! The LiDAR probe uses laser induction technology for distance measurement.

It has a unique dust removal brush structure built in, and the radar drives the dust removal brush to complete the optical mirror dust removal operation. The user can customize the dust removal configuration.

The LDS25-NX can be applied to scenarios such as horizontal distance measurement, liquid level measurement, parking management systems, object proximity and presence detection, intelligent trash can management systems, robot obstacle avoidance, automatic control, sewage systems, bottom water level monitoring, etc…

It detects the distance between the measured object and the sensor, and uploads the value via wireless to an NB-IoT Server.

The LDS25-NX supports different uplink methods including MQTT, MQTTs, UDP ,TCP or CoAP for different application requirements, and support uplinks to various IoT Servers.

The LDS25-NX supports BLE configuration and wireless OTA updates which makes the device easy to use.

The LDS25-NX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.
