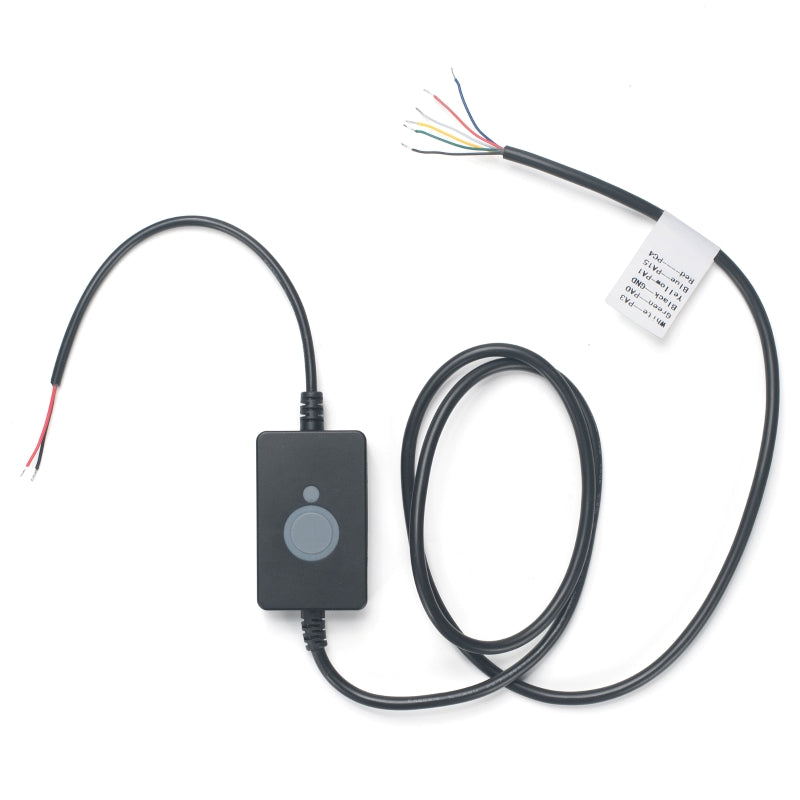

LC04: LoRaWAN 4 Channel Low Voltage Control Cable
1/2
  • LC04: LoRaWAN 4 Channel Low Voltage Control Cable
  • LC04: LoRaWAN 4 Channel Low Voltage Control Cable
LC04: LoRaWAN 4 Channel Low Voltage Control Cable

Features
  • LoRaWAN v1.0.3 Class C protocol
  • Power and input voltage range: 8 - 28V
  • Up to four channels low voltage output
  • Output voltage same as input voltage
  • Max output current per channel: 200mA
  • Supports downlink and timing control for output
  • AT commands to change parameters
  • Log function and key reset function
 Backorder
£38.00
£38.00

Description

The Dragino LC04 is a LoRaWAN Class C control cable which can control up to four channels low power.

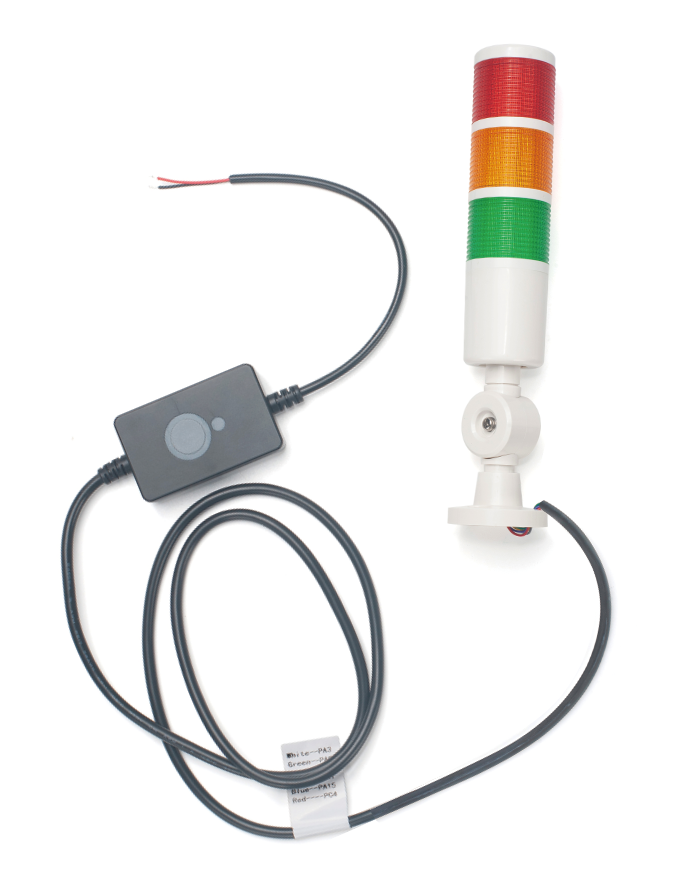

The LC04 is powered by 8 ~ 28v and delivery this power to four channel outputs. Users can send commands to the LC04 via LoRaWAN network to configure the LC04's 4-channel outputs to control external low voltage devices such as an RGB Stack Light.

Each LC04 is pre-loaded with a set of unique keys for LoRaWAN registration, users can register these keys to their LoRaWAN server and it will auto connect after power on.
