DR-PH01: Water pH Sensor for Dragino WQS Series
  • DR-PH01: Water pH Sensor for Dragino WQS Series
DR-PH01: Water pH Sensor for Dragino WQS Series

Features
  • Power supply: DC 7~30V
  • Power consumption: ?0.5W
  • Interface: RS485. 9600 Baud Rate
  • PH Range: 0 ~ 14.00 PH
  • Resolution: 0.01 PH
  • PH Accuracy: ±0.15 PH
  • Auto Temperature Compensate
  • Temperature Measure Range: 0 ~ 60 °C, Resolution: 0.1 °C
  • Temperature Accuracy: ±0.5 °C
  • Working environment: Temperature range: 0~60 °C
  • The reference electrode adopts a double salt bridge design
  • IP Rated: IP68
  • Pressure resistance: 0.6MPa
 Backorder
£226.00
£226.00

Description

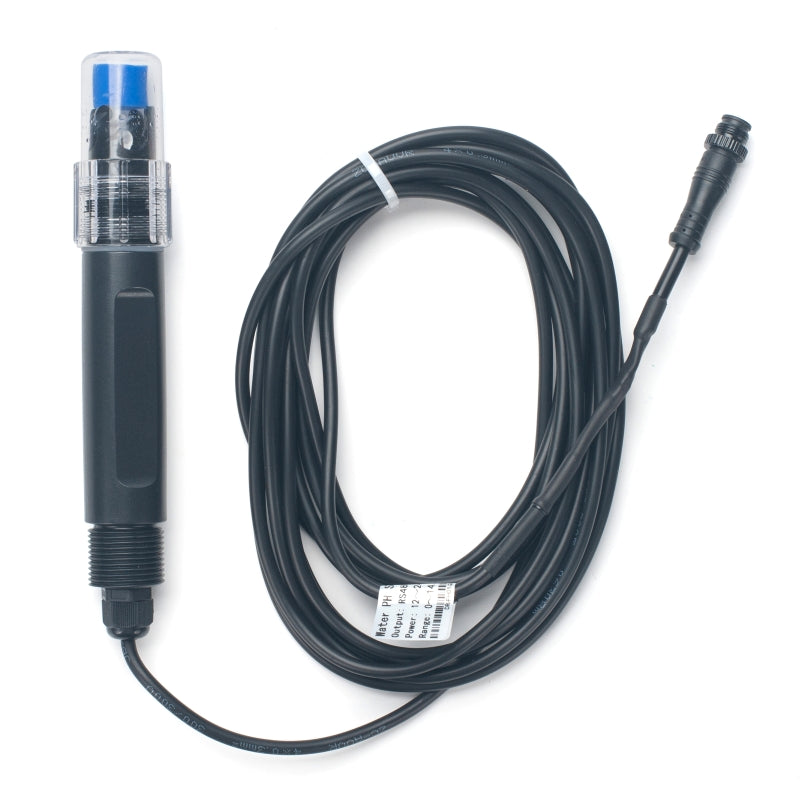

The DR-PH01 is a Water pH Sensor, designed for use with the Dragino WQS Series.

The Dragino WQS-XX is an advanced instrument designed for comprehensive water quality monitoring across various applications. It is ideal for monitoring tap water, industrial water, environmental water, wastewater, etc; which offers precise and reliable measurements to ensure water quality standards are met.

The sensor probe has an PH range of 0 ~ 14.00 PH with a resolution of 0.01 PH and an accuracy of ±0.15 PH. The probe is IP68 and uses an RS485 (9600 Baud Rate) interface.
