DR-EC200: Four Electrode Water Electrical Conductivity Sensor for Dragino WQS Series
  • DR-EC200: Four Electrode Water Electrical Conductivity Sensor for Dragino WQS Series
DR-EC200: Four Electrode Water Electrical Conductivity Sensor for Dragino WQS Series

Features
  • Power supply: DC 7~30V
  • Power consumption: <0.5W
  • Interface: RS485. 9600 Baud Rate
  • EC Range: 1 ~ 200,000?s/cm , Resolution: 1 ?S/cm
  • EC Accuracy: ±1%FS
  • Salinity measurement range: 0 ~ 70PSU, Resolution: 0.1PSU
  • Temperature Measure Range: -5 ~ 80 °C, Resolution: 0.1°C
  • Temperature Accuracy: ±0.5 °C
  • Temperature compensation range: -5 ~ 80 °C (default compensation temperature 25°C)
  • Temperature compensation coefficient: Default 0.2
  • Working ambient Temperature: 0 ~ 60°C
  • Working relative Humidity: <85% RH (Specifically refers to the cable male and female)
  • IP Rated: IP68
  • Pressure resistance: 0.6MPa
  • Wire length: 5 meters
  • Service life: 1 year of normal use
 Backorder
£432.00
£432.00

Description

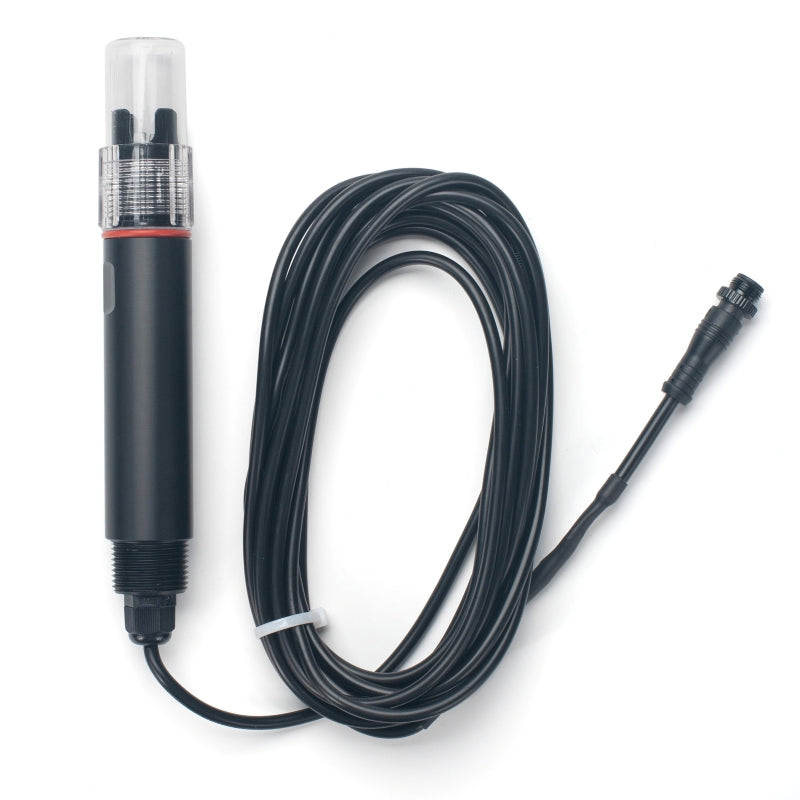

The DR-EC200 is a Four Electrode Water Electrical Conductivity Sensor, designed for use with the Dragino WQS Series.

The Dragino WQS-XX is an advanced instrument designed for comprehensive water quality monitoring across various applications. It is ideal for monitoring tap water, industrial water, environmental water, wastewater, etc; which offers precise and reliable measurements to ensure water quality standards are met.

The DR-EC200 offers continuous monitoring of cross-section water quality, aquaculture, sewage treatment, environmental protection, pharmaceuticals, food,tap water, seawater and other high conductivity environments.

The sensor probe has a salinity range of 0 ~ 70PSU with a resolution of  0.1PSU and an EC range of 1 ~ 200,000μs/cm with a resolution of 1 μS/cm and an accuracy of ±1%FS. The probe is IP68 and uses an RS485 (9600 Baud Rate) interface.
