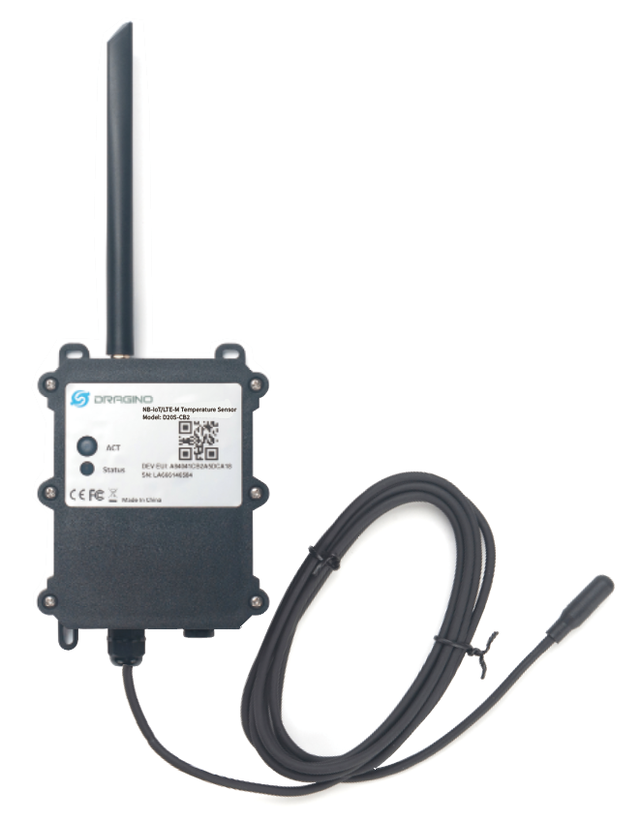

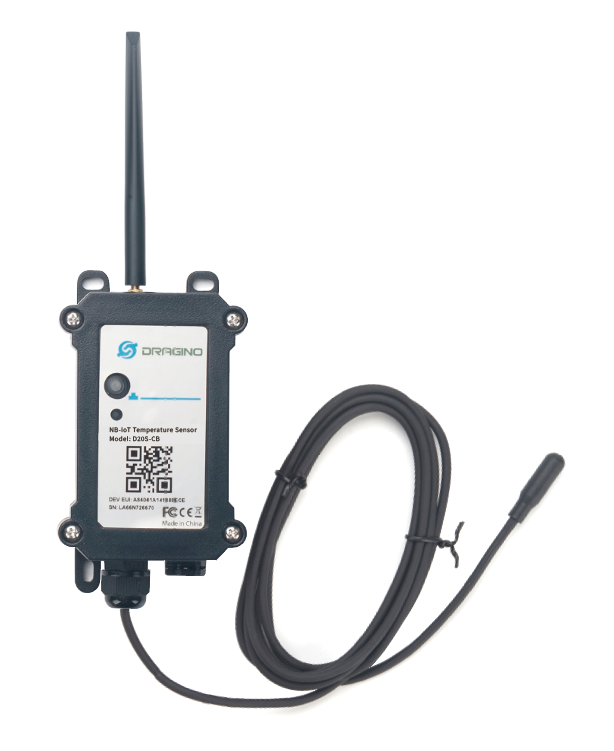

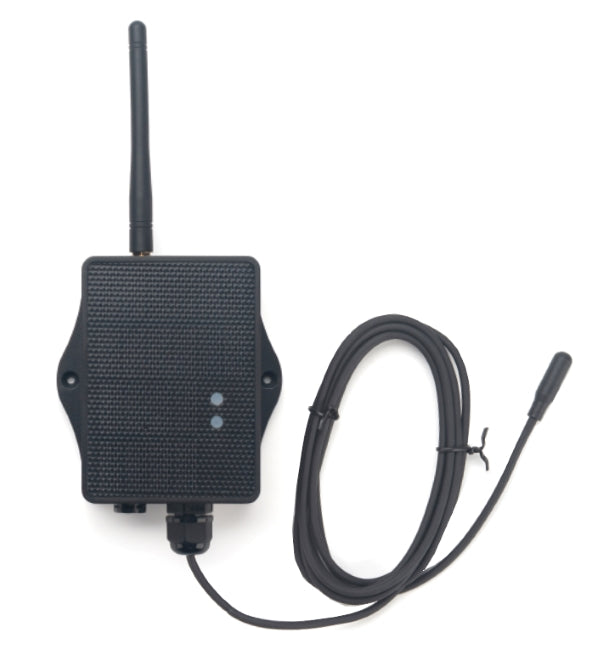

D20S-CX: CAT-M1/LTE-M Buried Type Outdoor Temperature Sensor

1/3

D20S-CX: CAT-M1/LTE-M Buried Type Outdoor Temperature Sensor

Features

Measurement range: -55°c ~ 125°c
Accuracy: ±0.5°c (max ±2.0°c)
Supports temperature alarm feature
Ultra-low power consumption
Supports Bluetooth v5.1 remote configuration
Supports OTA firmware updates
Uplinks periodically
GNSS for Location reporting
Downlink to change parameters

Backorder

£87.00

Description

The Dragino D20S-CX is a CAT-M1/LTE-M Buried Type Temperature Sensor for Internet of Things solutions. The D20S-CX will convert the temperature reading to upload the sensor data to an IoT platform via the CAT-M1/LTE-M network.

The temperature sensor used in D20S-CX can measure -55°C ~ 125°C with an accuracy of ±0.5°C (max ±2.0 °C).

The D20S-CX supports the temperature alarm feature. Users can set the temperature alarm for instant notice. The D20S-CX supports the datalog feature, it can log the data when there is no CAT-M1/LTE-M network connection and uplink this data when network recovers.

The D20S-CX supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirements, and supports uplinks to various IoT Servers.

The D20S-CX supports BLE configuration and OTA updates which makes the device easy to use.

The D20S-CX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.
