CS01-CX: CAT-M1/LTE-M 4 Channel Current Sensor Converter

Features
  • Split-core current transformer
  • Supports a maximum of 4 current sensors
  • Supports various current sensor ratios: 100A/50mA, 300A/50mA, 600A/50mA
  • Monitors machine running status
  • Analyze power consumption trends
  • Supports current alarm feature
  • Core Material; Ferrite
  • Ultra-low power consumption
  • Supports Bluetooth v5.1 remote configuration
  • Supports OTA firmware updates
  • Uplinks periodically
  • GNSS for Location reporting
  • Downlink to change parameters
Power Type
Backorder
£114.00
£114.00

Description

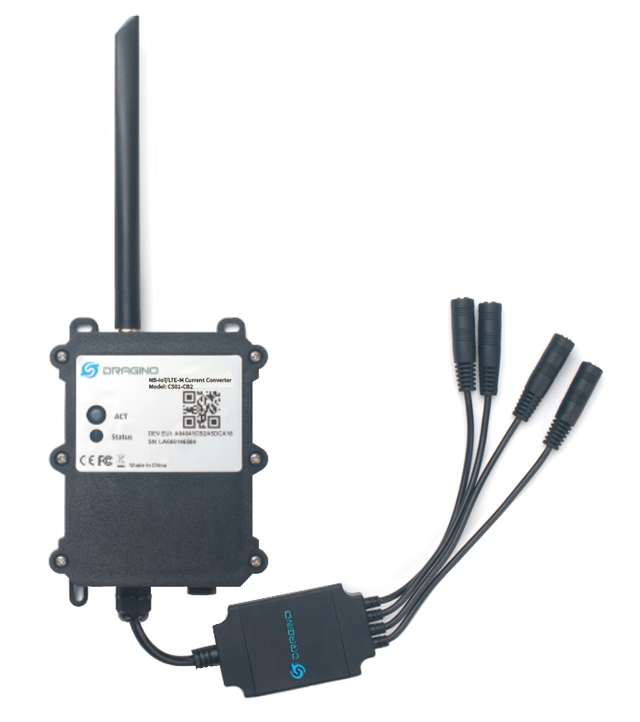

The Dragino CS01-CX is a 4 Channels Current Sensor Converter. It can convert the reading from current sensors and upload to an IoT server via the CAT-M1/LTE-M Network.

The CS01-CX can be used to monitor the machine running status and analyze power consumption trends.

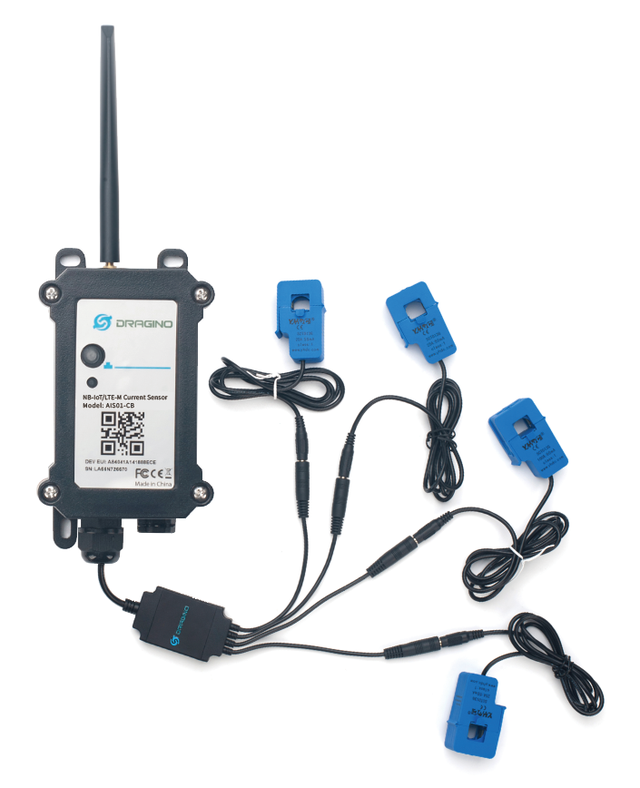

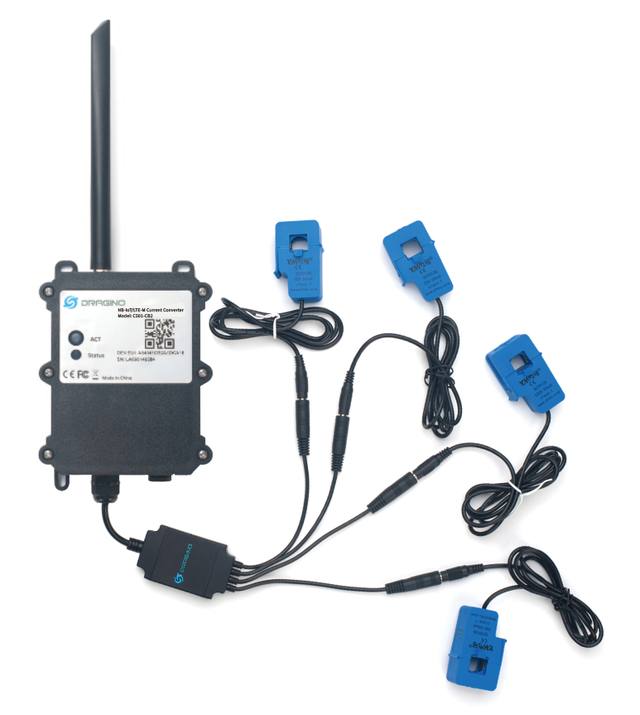

The CS01-CX supports a maximum of 4 current sensors. The current sensors are detachable and can be replaced with different scales.

The CS01-CX supports BLE configuration and wireless OTA updates which makes the device easy to use.

The CS01-CX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.

Please Note:
This listing is for the main processing unit only, CT clamps must be purachsed separately.
