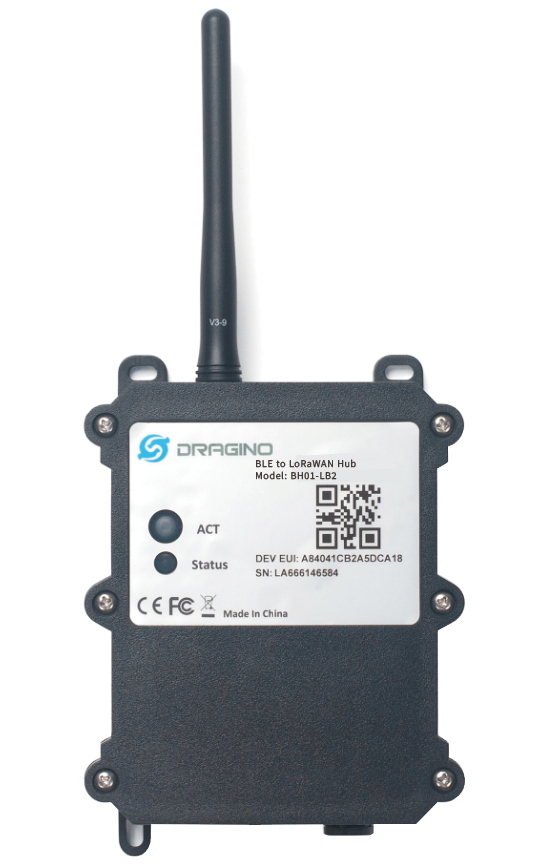

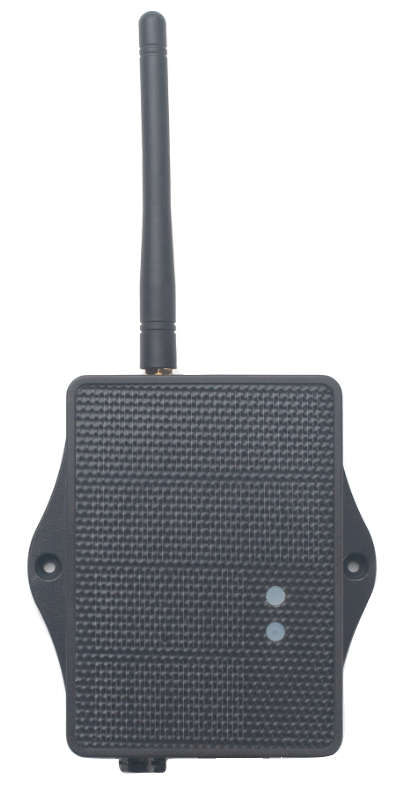

BH01-LX: BLE to LoRaWAN Hub

The Dragino BH01-LX BLE to LoRaWAN Hub is an edge communication node device designed for loT applications. It uses the BLE Bluetooth module to periodically scan and collect data from surrounding Bluetooth temperature and humidity sensors (such as BCN02, iBeacons or third-party BLE sensors), and then uses the LoRaWAN protocol to transmit the data over long distances to the cloud platform, achieving seamless connection between Bluetooth devices and low-power wide area networks.

The BH01-LX is a BLE to LoRaWAN Hub which can turn BLE devices to LoRaWAN devices. This feature can help system intergrator has widely choice in sensor selection and simplify the network structure.

It is suitable for cold chain warehouse monitoring, smart agricultural environment monitoring, asset tracking and urban infrastructure health management. It combines the flexibility of Bluetooth and the wide coverage of LoRaWAN. Compared with wi-fi connection, it can siginifcantly reduce the deployment cost of the Internet of Things.

The BH01-LX has a built-in BLE module so users can configure the sensor remotely via Mobile Phone. It also supports OTA upgrade via private LoRa protocol for easy maintainance.

The BH01-LX is powered by 8500mAh or 190000mAh Li-SOCI2 battery or solar powered with a 3000mAh Li-ion battery designed for long term use.
