Wio-SX1262: Wireless LoRaWAN Module
Wio-SX1262: Wireless LoRaWAN Module

Wio-SX1262: Wireless LoRaWAN Module

£5.00
£5.00
Skip to product information
Wio-SX1262: Wireless LoRaWAN Module
1/3
  • Wio-SX1262: Wireless LoRaWAN Module
  • Wio-SX1262: Wireless LoRaWAN Module
  • Wio-SX1262: Wireless LoRaWAN Module
Wio-SX1262: Wireless LoRaWAN Module

Features
  • High Performance: The transmit power up to 22dBm @868/930MHz; -136.73dBm sensitivity for SF12 with 125KHz BW.
  • Wireless Connectivity: SPI interface, supports 862~930MHz global LoRa&LoRaWAN frequency plan.

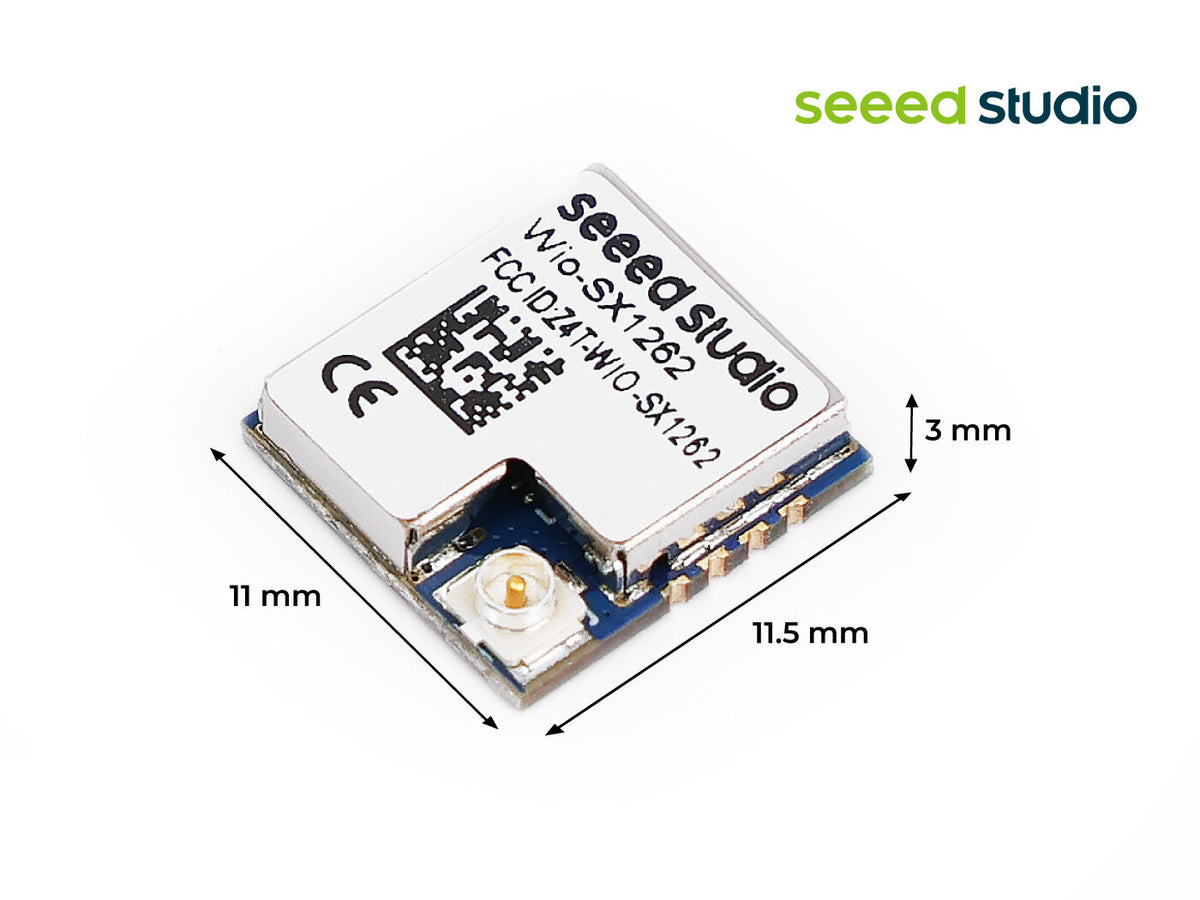

  • Small Size: 6mm X 11mm * 2.95mm @12 pins SMT.
  • Low Power Consumption: 1.62uA sleep current .
  • Onboard RF Interface: default IPEX antenna port.
  • FCC ID, CE, RoHS Certified
 Backorder
£5.00
£5.00

Description

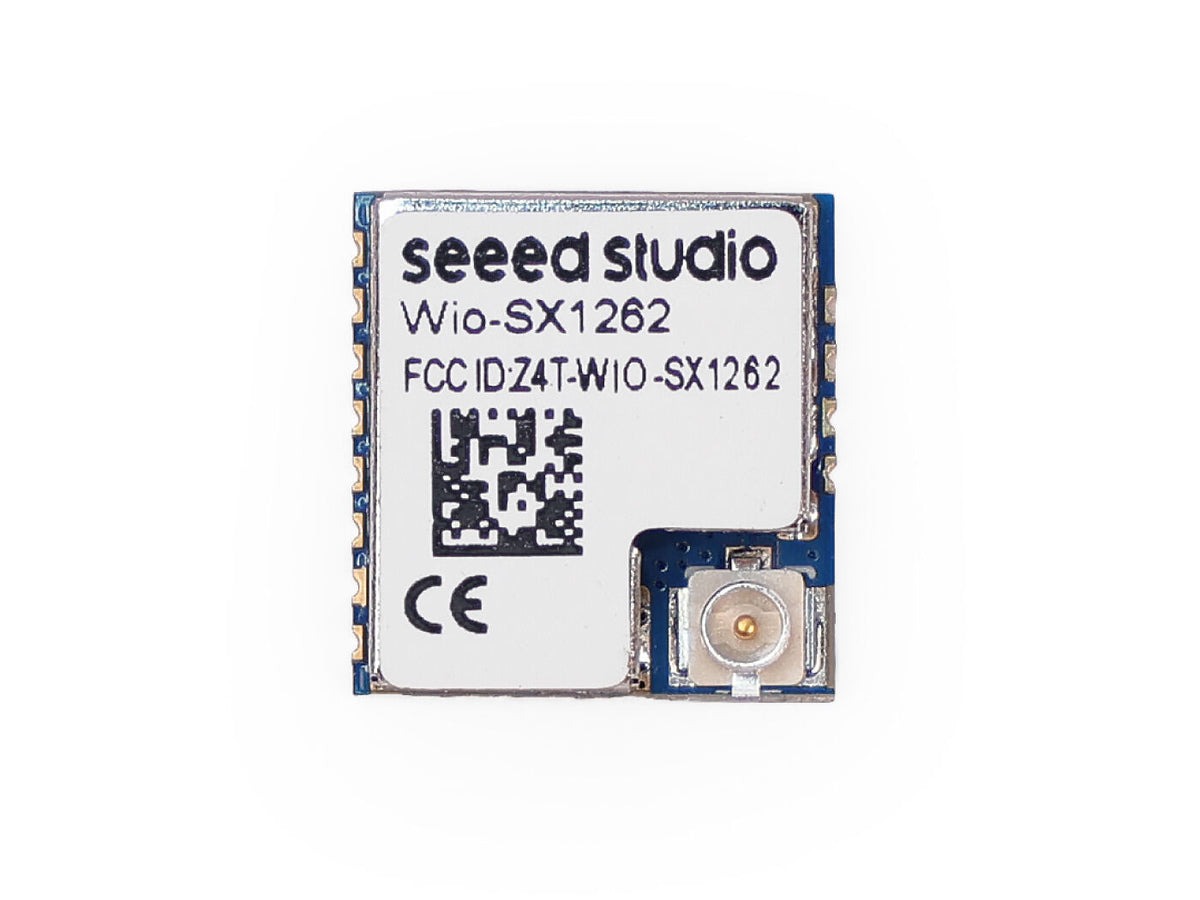

The Wio-SX1262 is a LoRa wireless module based on the Semtech SX1262 chip, supporting LoRa & LoRaWAN frequency from 868 to 915 MHz. Equipped with an onboard IPEX antenna connector and high-quality components like the TCXO, it ensures stable operation even under harsh conditions. Suitable for industrial, agricultural, smart home, and other long-range, low-power applications.

The transmit power up to 22dBm @868/930MHz; -136.73dBm sensitivity for SF12 with 125KHz BW. SPI interface, supports 862~930MHz global LoRa&LoRaWAN frequency plan.

The Wio-SX1262 is a perfect choices for designing LoRa devices. If you already have an MCU, such as an nRF52840 or ESP32, and you just need to add LoRa functionality, you can choose the Wio-SX1262.
