Wio-LR1121: Wireless Module with IPEX
Wio-LR1121: Wireless Module with IPEX

Wio-LR1121: Wireless Module with IPEX

£8.00
£8.00
Skip to product information
Wio-LR1121: Wireless Module with IPEX
1/3
  • Wio-LR1121: Wireless Module with IPEX
  • Wio-LR1121: Wireless Module with IPEX
  • Wio-LR1121: Wireless Module with IPEX
Wio-LR1121: Wireless Module with IPEX

Features
  • High Performance: The transmit power up to 33 dBm @868/930MHz; 11.23dBm @ 2.4-2.5GHz
  • Wireless Connectivity: SPI interface, supports Sub-GHz global LoRa&LoRaWAN frequency plan and 4GHz

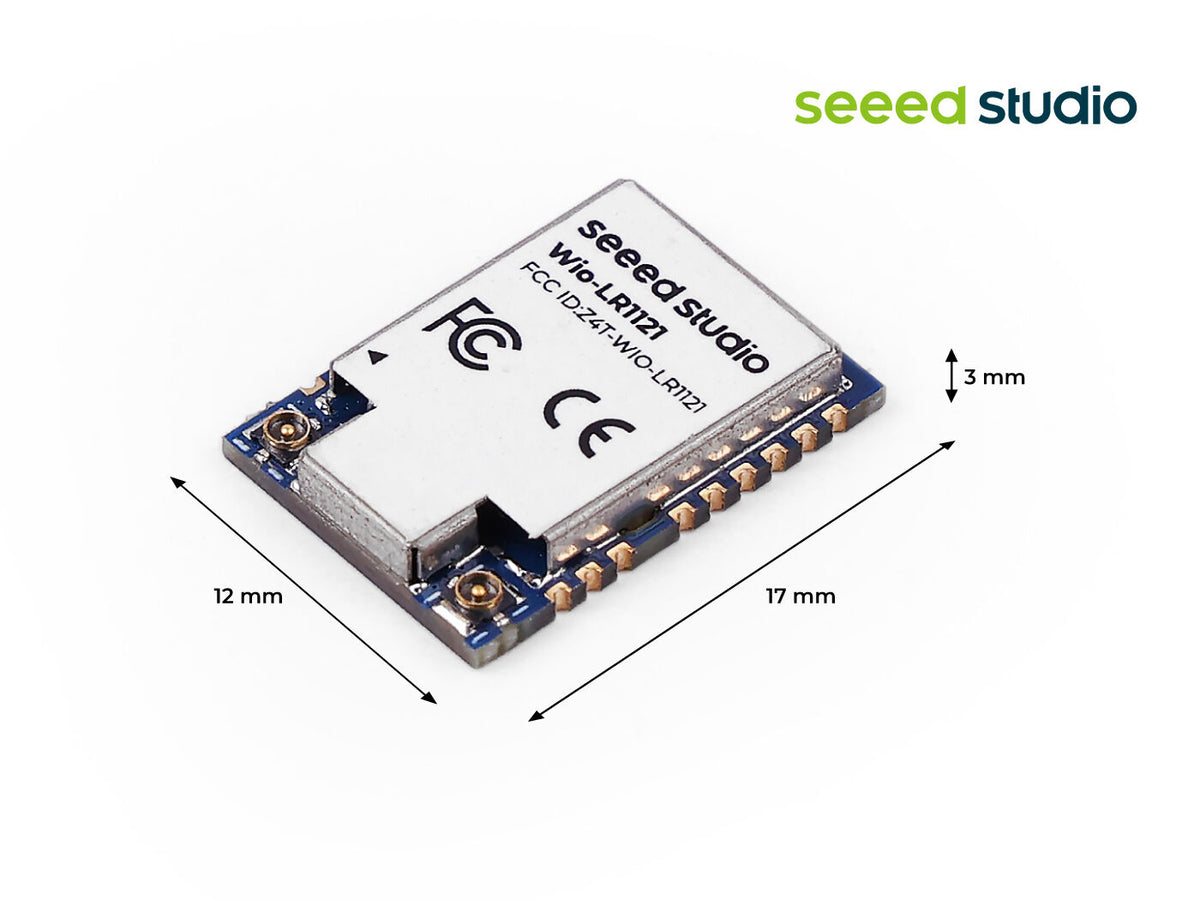

  • Small Size: 17*12*2.6mm @24Pins SMT
  • Low Power Consumption: 35uA sleep current;Sub-GHz: 20.33dBm@124.5mA/3.3V; 2.4G:11.23dBm@30.72mA/3.3V
  • RF Interface: With IPEX4 @1.5mm
  • FCC, CE, Certified
 Backorder
£8.00
£8.00

Description

Wio-LR1121 is a multi-band LoRa® connectivity module designed for Internet of Things (IoT) LoRaWAN applications. It supports sub-GHz, 2.4GHz ISM, and 2.1GHz satellite S-band communications. The module features a compact size and an ultra-low power design, integrating a TCXO (temperature-compensated crystal oscillator) and an RF switch, is suitable for global use in smart homes, agricultural sensors, building automation, smart cities, asset tracking, retail store sensors, smart metering, and environmental monitoring.

The module has a transmit power up to 33dBm @868/930MHz;11.23dBm @ 2.4-2.5GHz and the SPI interface, supports Sub-GHz global LoRa&LoRaWAN frequency plan and 4GHz.The Wio-LR1121 and is a perfect choice for designing LoRa devices
