Wio-E5: Mini Dev Board

Name: Wio-E5: Mini Dev Board
Brand: Seeed
SKU: 113990939
Price: 24.00 GBP
Availability: InStock

1/4

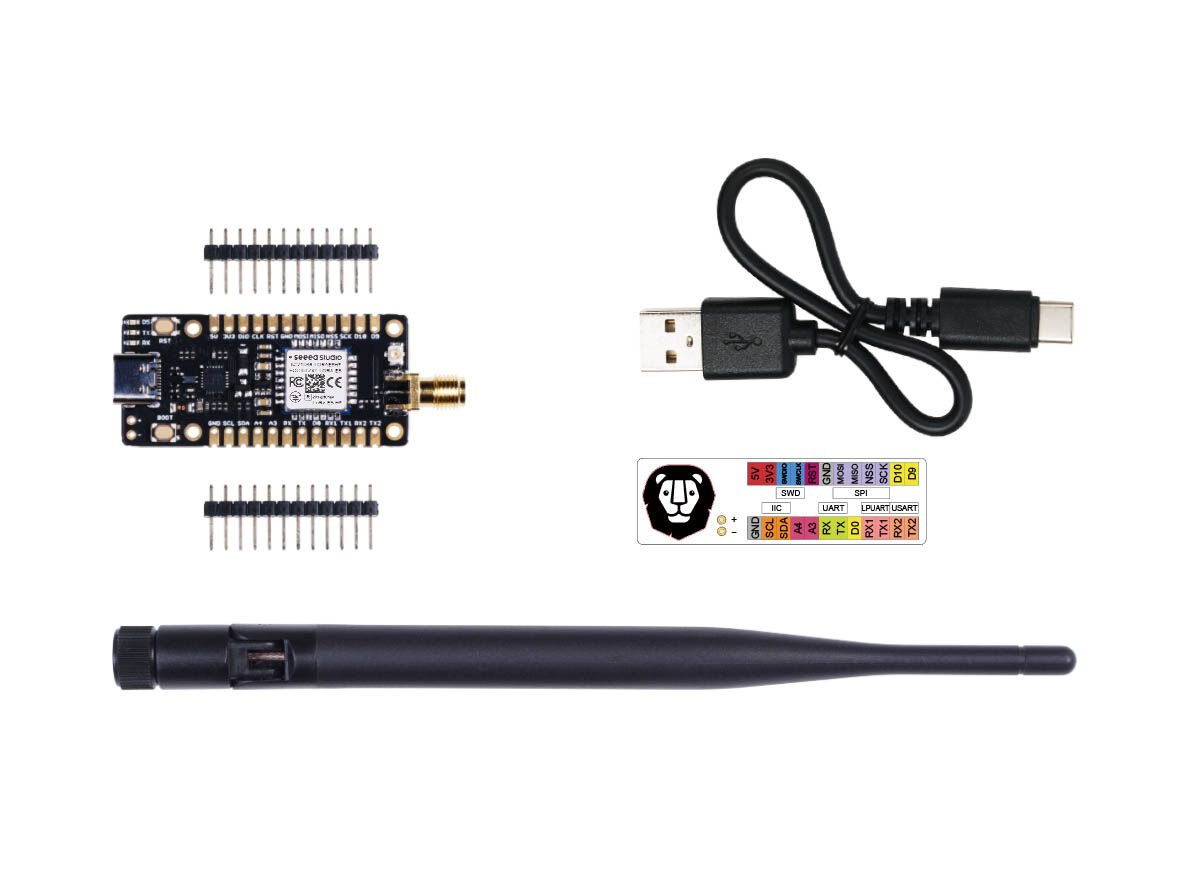

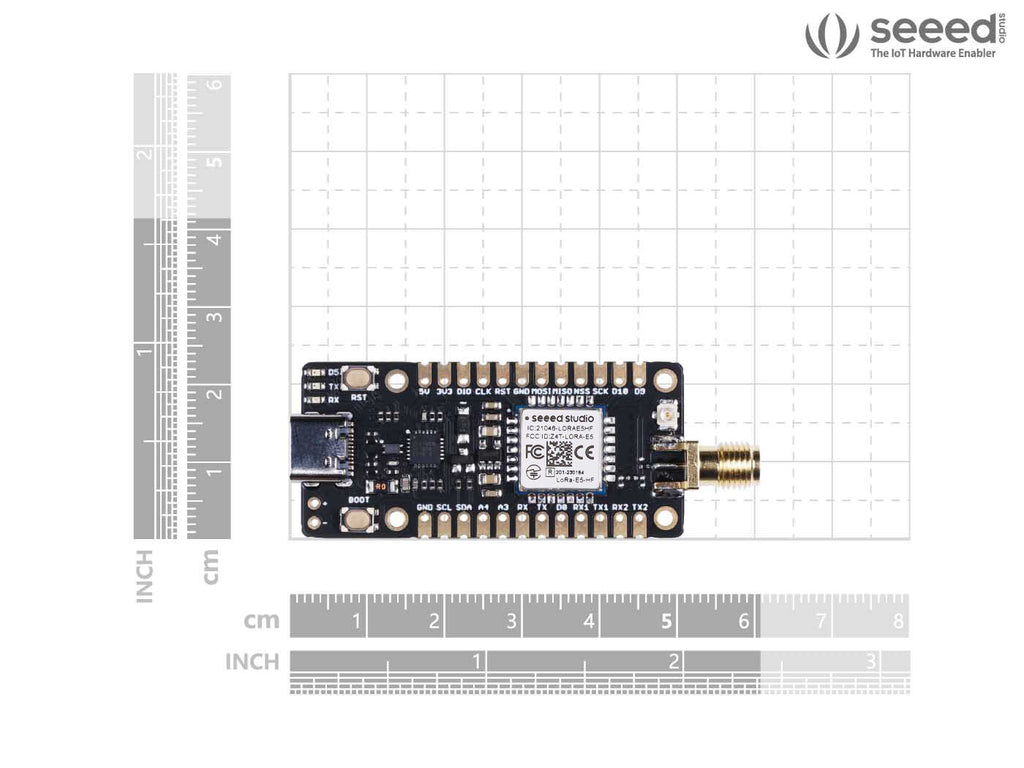

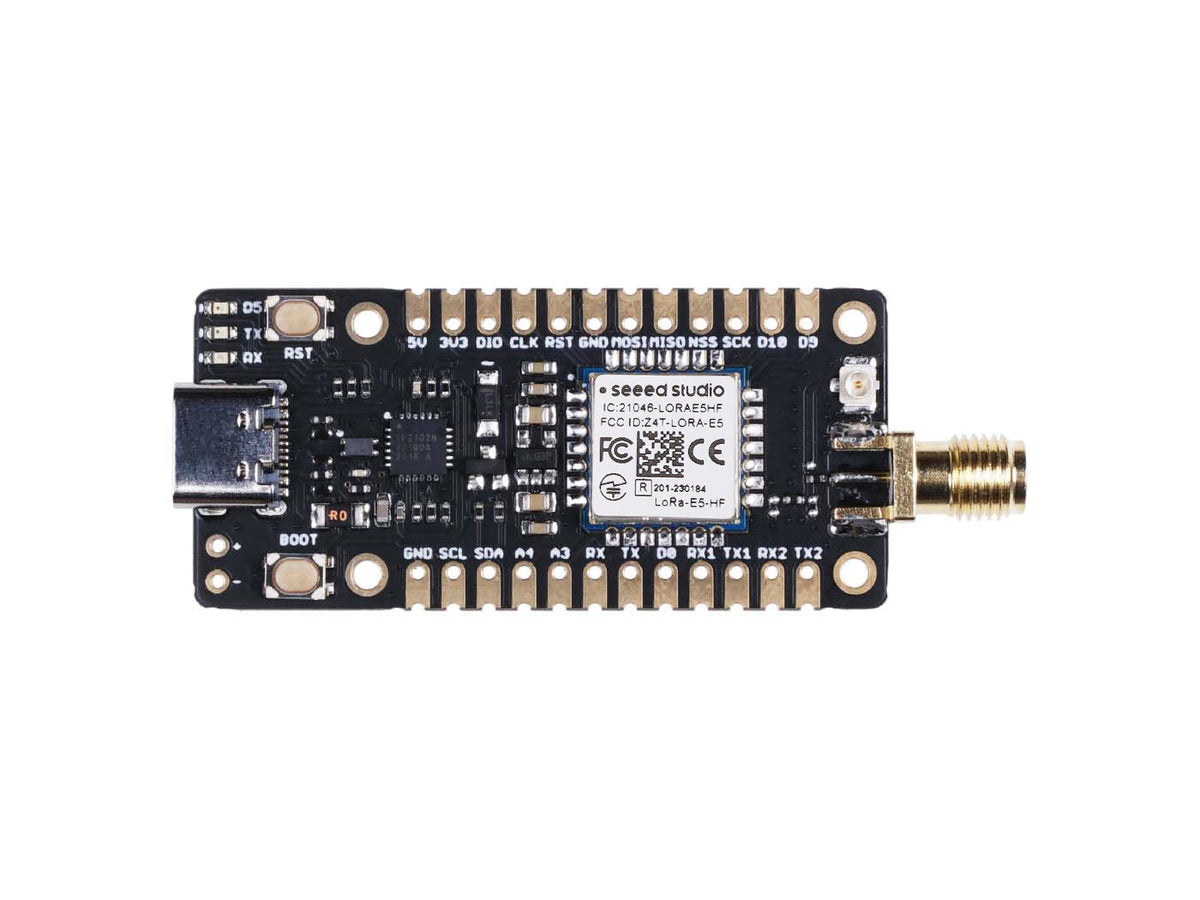

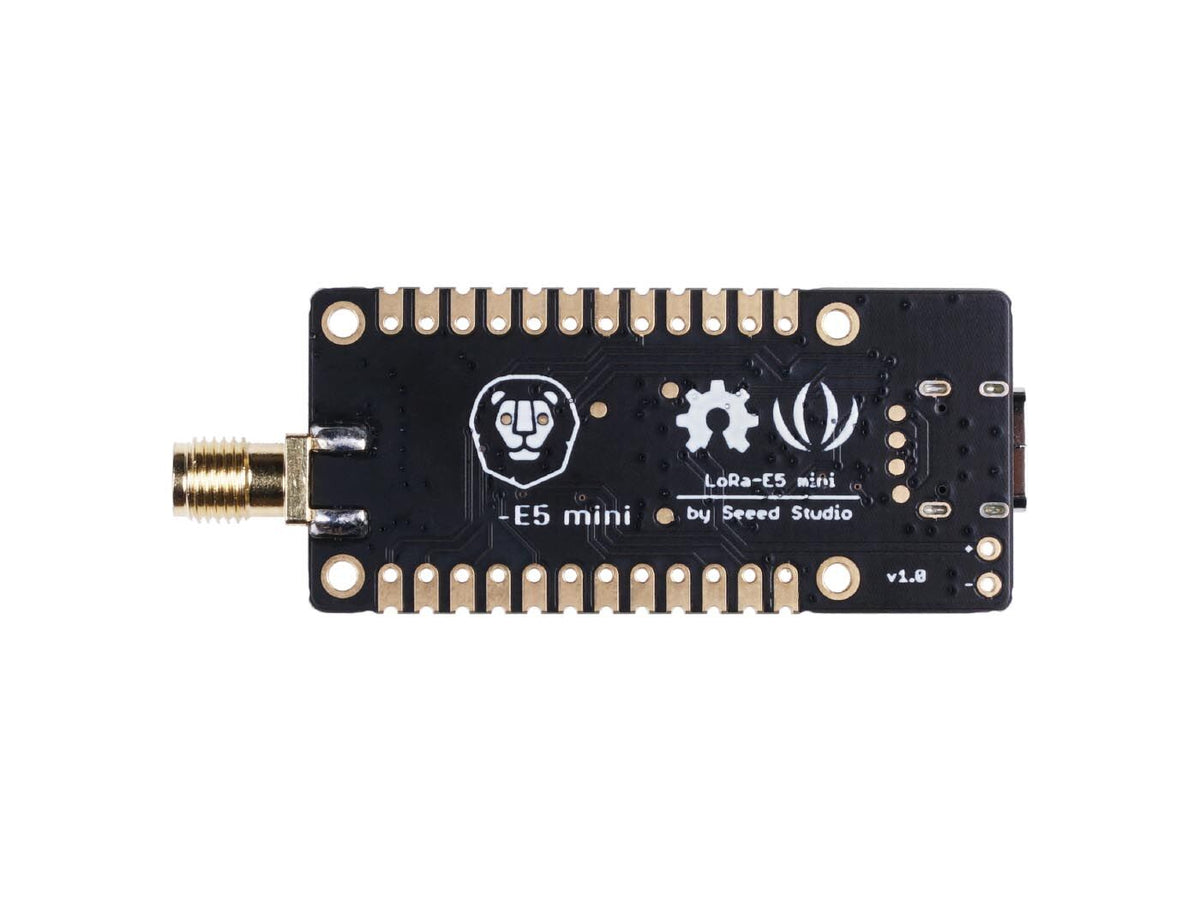

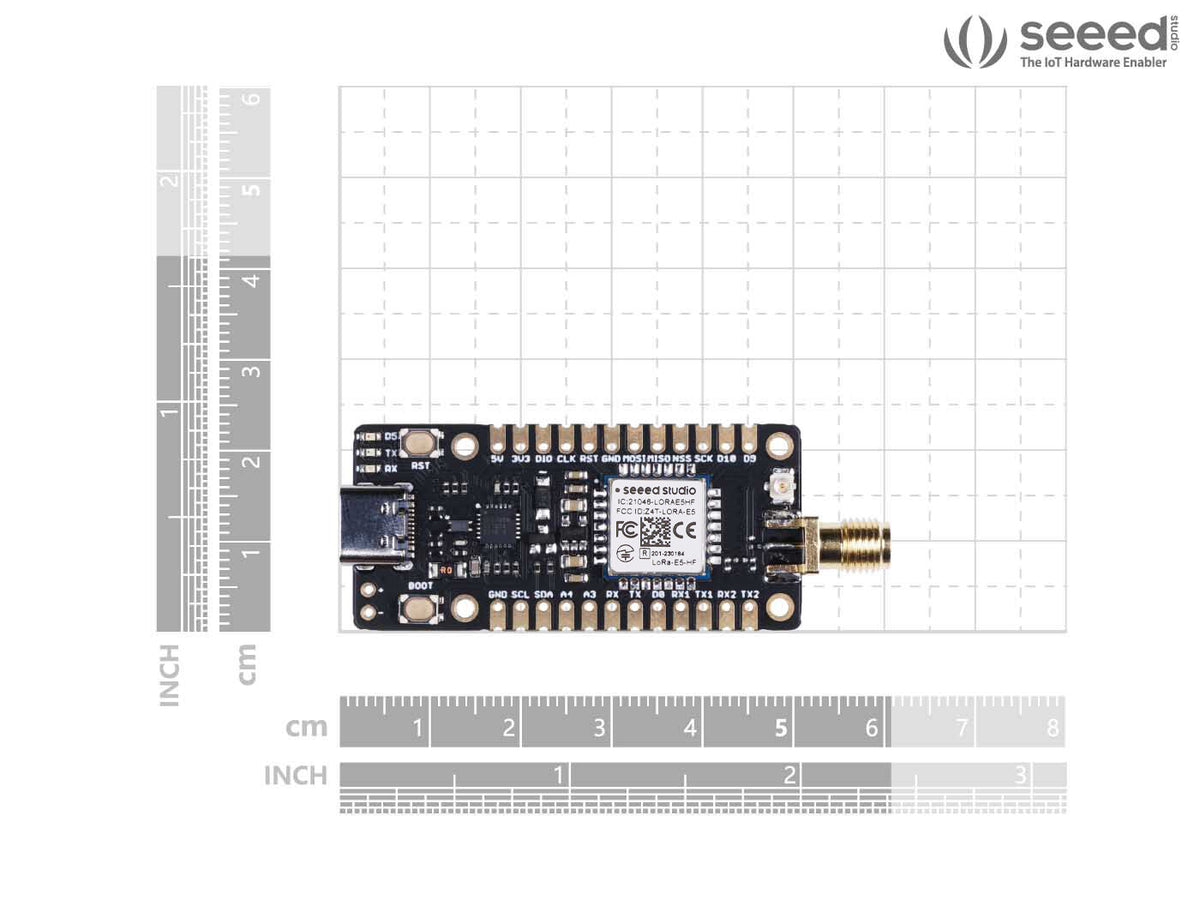

Wio-E5: Mini Dev Board

Features

High Performance: The transmit power up to 22dBm @868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW.
Long Distance Use:158dB link budget
Wireless Connectivity: Embedded Long Range protocol, AT command, support global Long Range frequency plan
Use-friendly: It features fully lead-out GPIOs, as well as convenient RESET and BOOT buttons on board.
FCC, CE, IC and Telec Certified

Backorder

£24.00

Description

Wio-E5 mini is a compacted-sized development board suitable for the rapid testing and building of small-size prototyping and helps you design your ideal Long Range wireless IoT device with a long-distance transmission range.

This ultra-compact module has extremely low power consumption and is capable of supporting both (G)FSK and Long Range. With its built-in AT command firmware, makes it easy for developers to build their prototypes or applications. It can easily support LoRaWAN® protocols and a variety of frequency plans, making it an ideal solution for Long Range sensor nodes and a range of wireless communication applications. Whether you need to set up Wireless Meter Reading, IoT Nodes, or a Sensor Network, the Wio-E5 is perfectly suited for low power wide area IoT scenarios.

With this module, you can connect to different LoRaWAN server platforms like TheThingsStack, Chirpstack, and others.
