Wio-E5: Dev Kit

Name: Wio-E5: Dev Kit
Brand: Seeed
SKU: 113990934
Price: 29.00 GBP
Availability: InStock

1/4

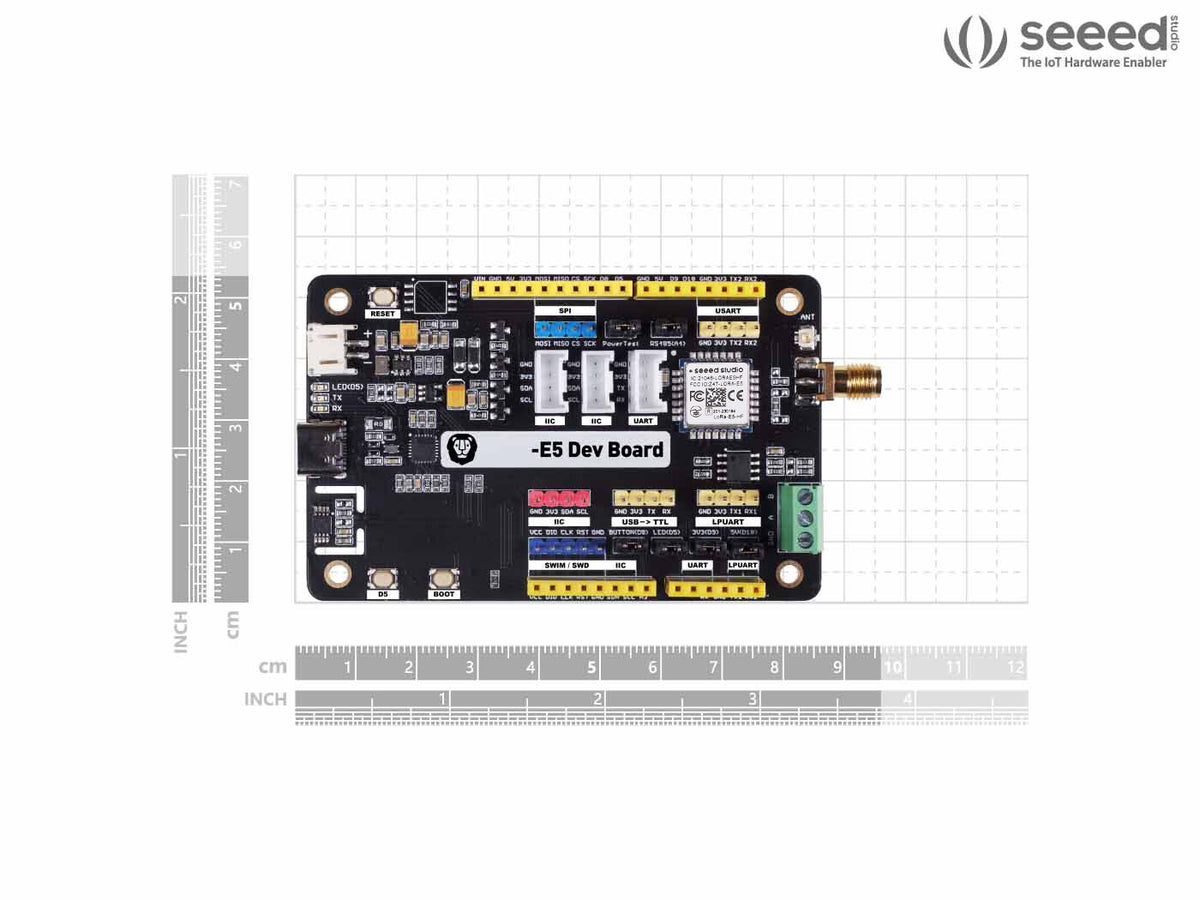

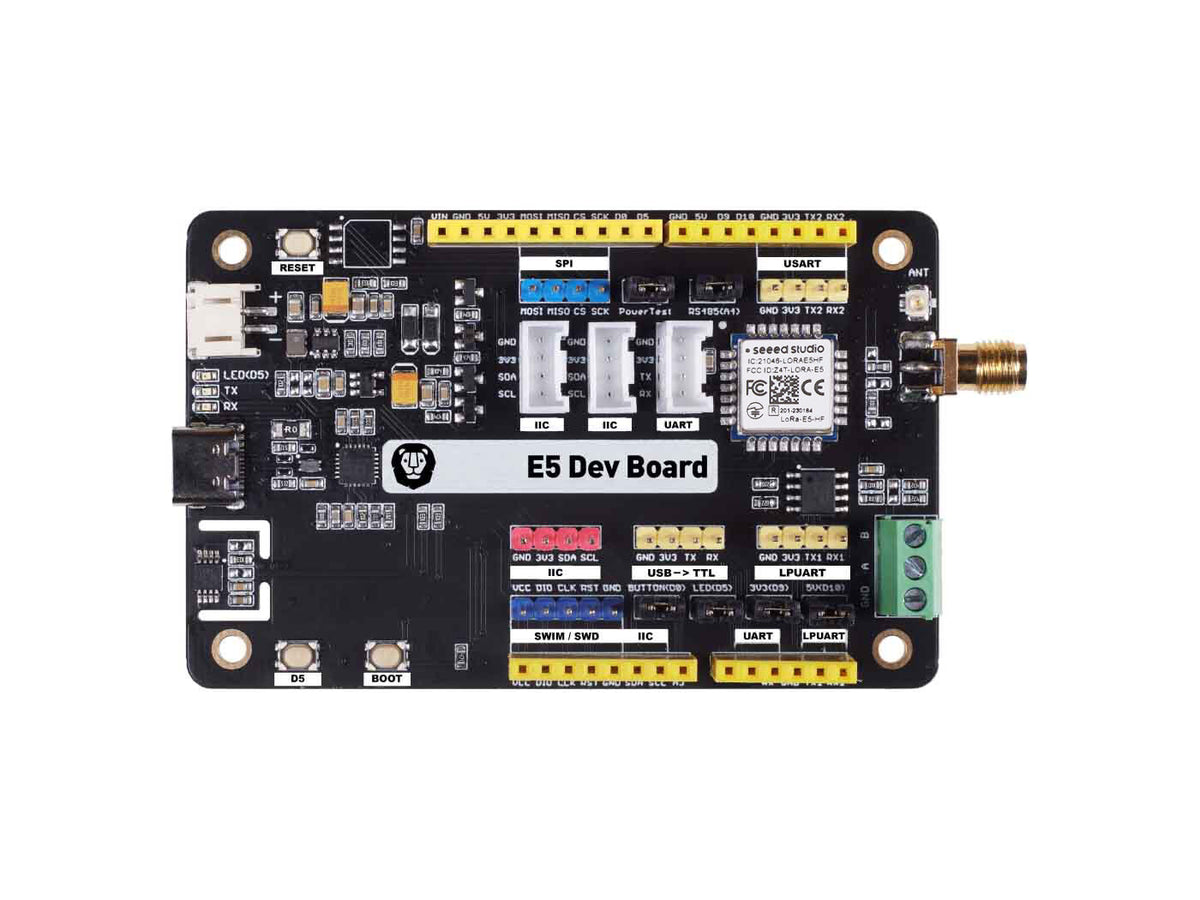

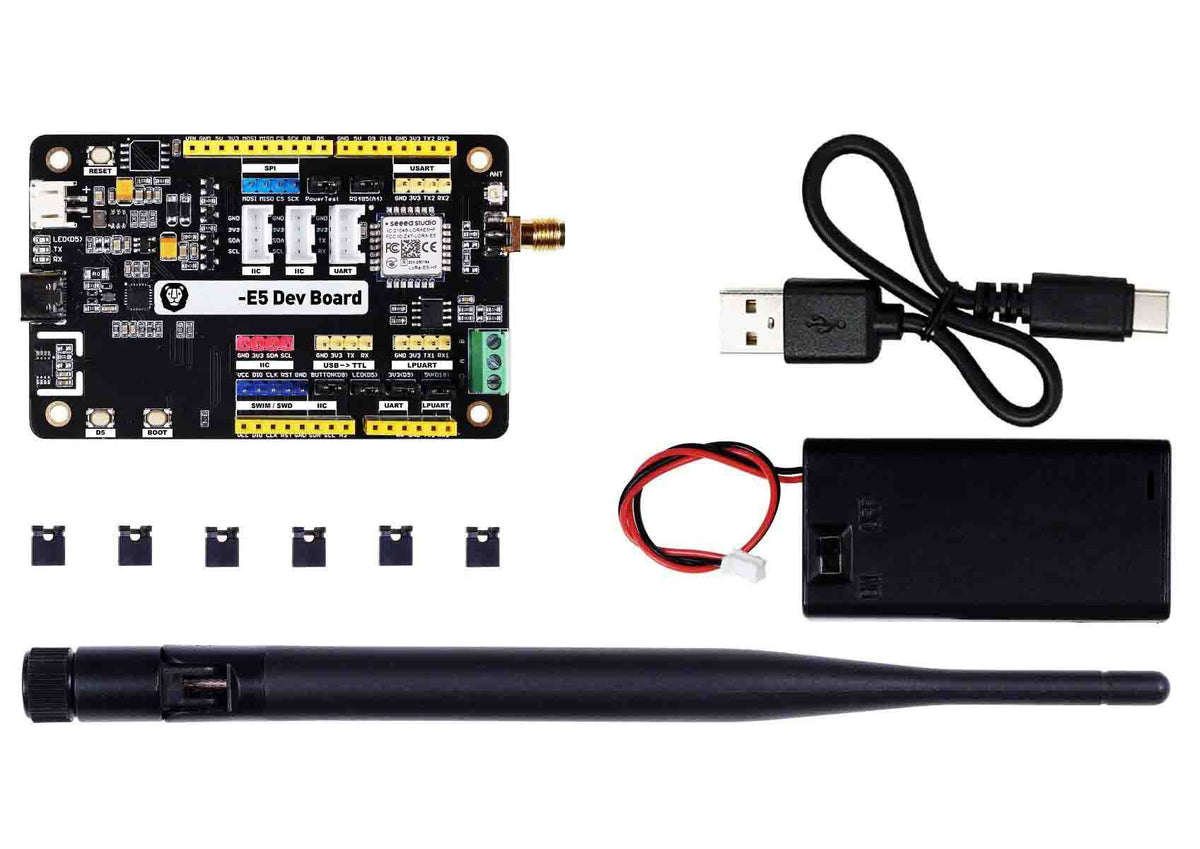

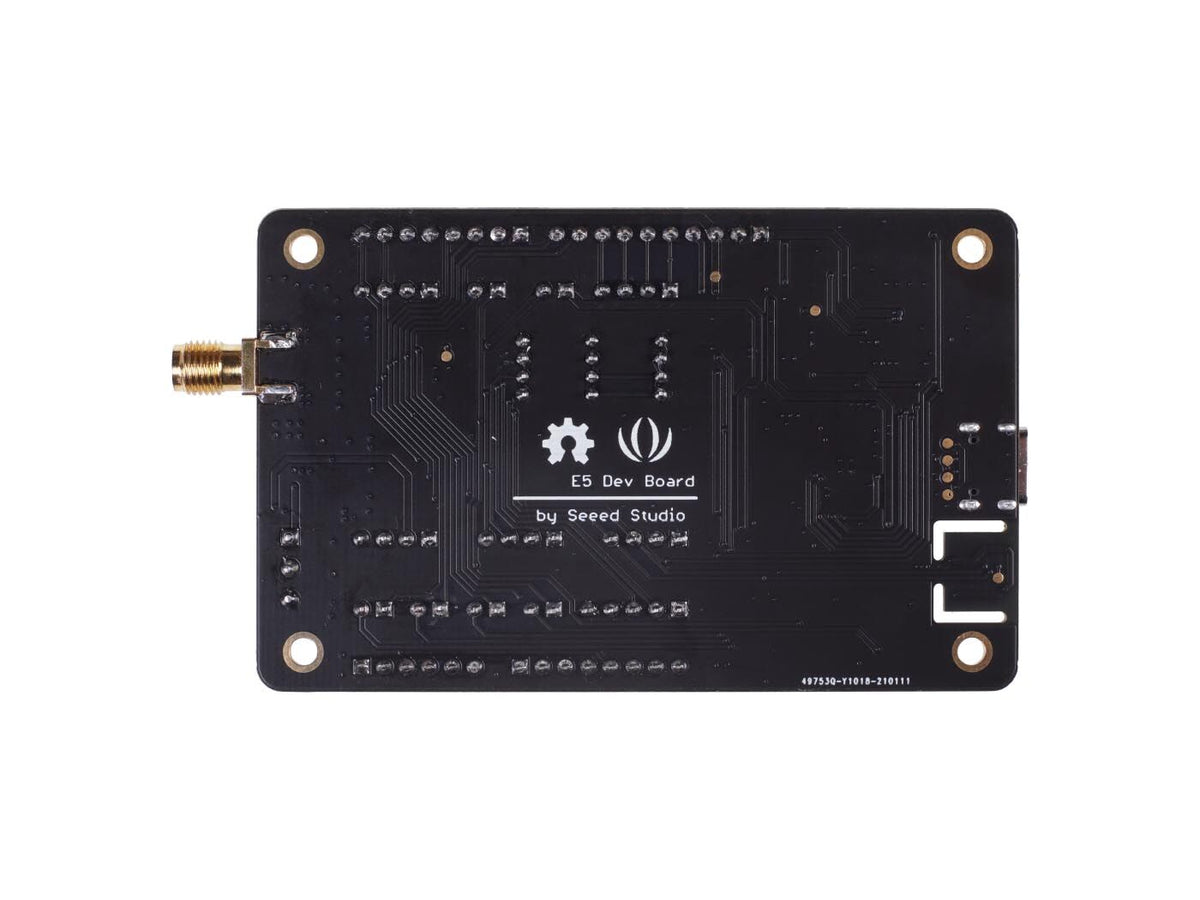

Wio-E5: Dev Kit

Features

High Performance: The transmit power up to 22dBm @868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW.
Long Distance Use:158dB link budget
Wireless Connectivity: Embedded Long Range protocol, AT command, support global Long Range frequency plan
Use-friendly: It features fully lead out GPIOs, rich interfaces including RS-485, Grove, and etc, as well as convenient RESET and BOOT buttons on board.
FCC, CE, IC and Telec Certified

Backorder

£29.00

Description

LoRa-E5 Dev Kit is an easy-to-use compact development toolset for you to unlock the powerful performance of the Wio-E5 STM32WLE5JC LoRa module. It provides a broader range of access protocols and superabundant types of interfaces. Thus you are able to test and prototype the module rapidly with RS485, Grove interfaces, and rich GPIOs.

This ultra-compact development board has an extremely low power consumption and is capable of supporting both (G)FSK and Long Range. With its built-in AT command firmware, makes it easy for developers to build their prototypes or applications. It can easily support LoRaWAN® protocols and a variety of frequency plans, making it an ideal solution for Long Range sensor nodes and a range of wireless communication applications. Whether you need to set up Wireless Meter Reading, IoT Nodes, or a Sensor Network, the Wio-E5 is perfectly suited for low power wide area IoT scenarios.

With this module, you can connect to different LoRaWAN server platforms like TheThingsStack, Chirpstack, and others.
